Fig. 5

ID: ZDB-IMAGE-250730-79
Publication: Ingham et al., 2025 - Loss of SLX4IP leads to Common Fragile Sites instability and compromises DNA interstrand crosslink repair in vivo
All Figures: Figures for Ingham et al., 2025


Figure Caption

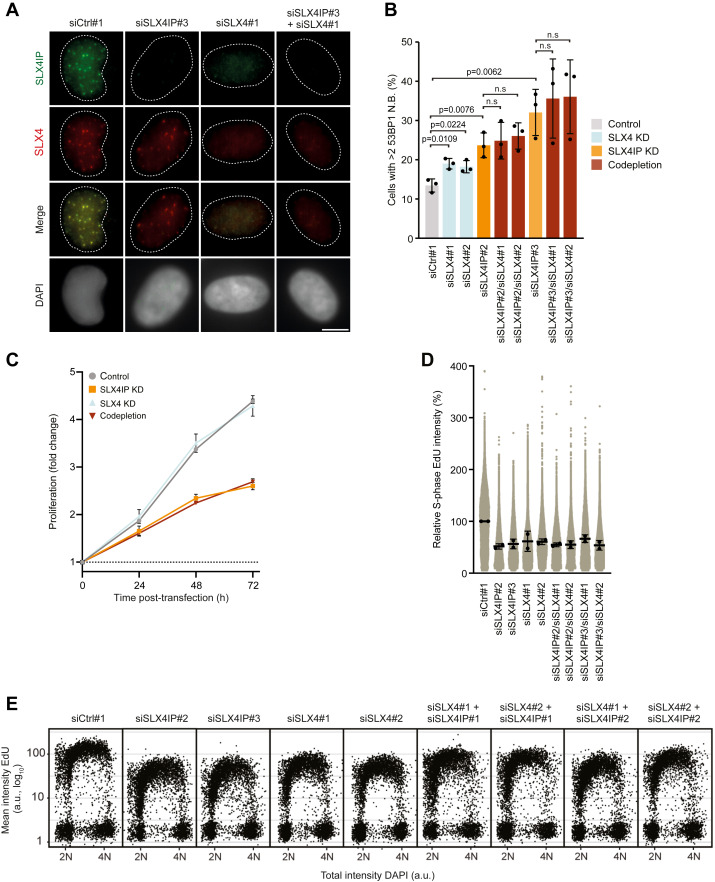

Fig. 5 SLX4IP functions with SLX4 to maintain chromosome stability but also display SLX4-independent functions. A, Representative pictures of SLX4IP-, SLX4-and co-depleted U2OS cells. B, G1 53BP1 N.Bs in cells treated with indicated siRNA (mean ± SD; n = 3 biological replicates; >2000 cells analyzed per condition). C, proliferation of cells treated with indicated siRNA. Co-depleted conditions are pooled (mean ± SD; n = 2 biological replicates). D, S-phase EdU intensity and (E) representative EdU profiles from indicated transfections (mean; n = 2 biological replicates; 10′000 cells per condition are shown). Significance was assessed by Student's unpaired t-tests. Scale bar: 10 μM.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ J. Biol. Chem.
