ZFIN Image: Abgueguen et al., 2025, Figure S5.


Figure Caption

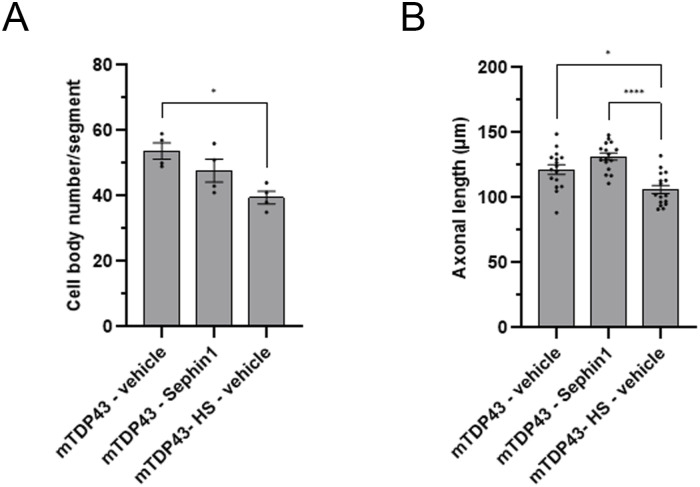

Figure S5. Impact of TDP-43^G348C protein expression in motor neurons of zebrafish embryos.

(A) Number of cell body of motor neurons per segment of zebrafish embryos treated with vehicle or Sephin1 (n = 4 replicates per condition). (B) Axonal length of motor neurons in zebrafish embryos treated with vehicle or Sephin1 (n = 16 motor neurons per condition). mTDP43: zebrafish harboring the mTDP43 transgene without expressing the TDP43^G348C protein; mTDP43-HS: zebrafish expressing TDP43^G348C protein. *P < 0.05, ****P < 0.0001 Kruskal-Wallis test followed by Dunn’s multiple comparison test mean ± SEM.
