Fig. 7

ID
ZDB-IMAGE-250602-117
Source
Figures for Lorenzini et al., 2025
Figure Caption

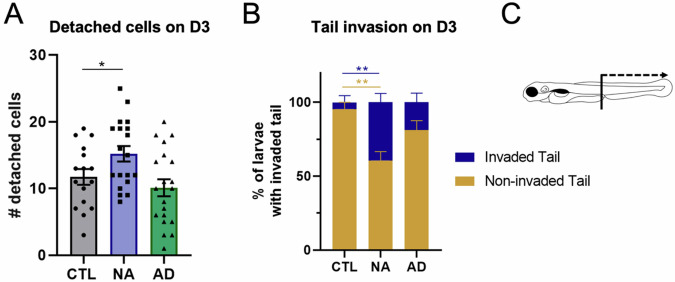

Fig. 7 Effect of catecholamines in xenograft melanoma model.

A The graph shows the quantification of detached cells from the primary cancer mass on D3. Detached cells were counted daily in larvae for every condition on D0 and D3. Larval xenografts with already disseminated cells on D0 were excluded from the analysis, to avoid considering larvae with accidentally transplanted cells in the blood circulation. Differences among treated conditions and control conditions were analyzed by ordinary one-way ANOVA: *P-value < 0.05. n = 16–20. B Graph represents the percentage of larvae with tail invaded/non-invaded by A375P cells in the three indicated conditions. Differences among treated conditions and control conditions were analyzed by two-way ANOVA: *P-value < 0.0332, **P-value < 0.0021. n = 19–20. C Schematic representation of larva where the region of the tail is indicated. Cancer cells in the tail = detached cells localized from urogenital opening until the posterior part of the CHT. NA 10 μM = larvae transplanted with A375P cells and co-injected with 10 μM of noradrenaline. AD 1 μM = larvae transplanted with A375P cells and co-injected with 1 μM of adrenaline.
