ZFIN Image: Fargher et al., 2025, Fig. 5


Figure Caption

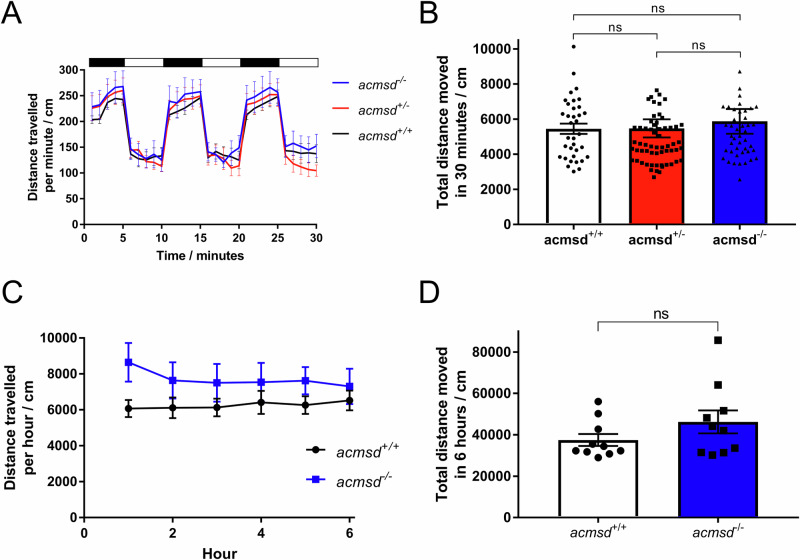

Fig. 5 acmsd mutant zebrafish demonstrate normal swimming behaviour.

A Following habituation, 5dpf larvae were exposed to alternating dark (black bar)-light (white bar) cycles. B Total distance travelled was indistinguishable between genotypes (Kruskal-Wallis one-way ANOVA, p = 0.1902). n = 45 acmsd^-/-; 62 acmsd^+/-; 35 acmsd^+/+ from three biological replicates. C Following a habituation period, adult movement was recorded over 6 h at 9mpf. D. No difference in the total distance travelled was found between genotypes (unpaired two-tailed t test, p = 0.1796). n = 10 acmsd^-/-; 10 acmsd^+/+ (equal male/female ratio) taken at two separate time points. Graphs A + C show mean ± SEM. Graphs B + D show individual fish with mean ± SEM values.
