Fig. 6

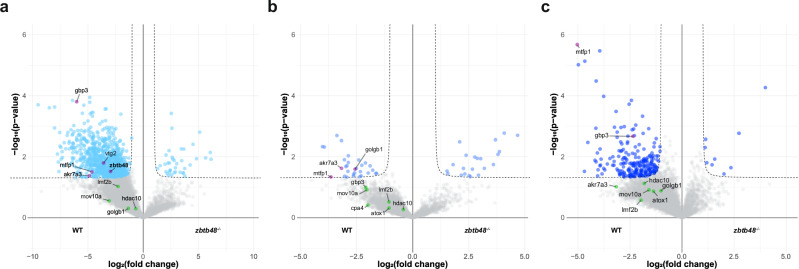

Fig. 6 Proteomic analysis of zbtb48^−/− gonads.

Volcano plots of the proteome analysis of ovaries from 40 dpf (a), testes from 40 dpf (b) and testes from 10.5-month-old (c) wild-type and zbtb48^−/− mutant fish. Biological replicates of 40 dpf ovaries (n = 3) and 40 dpf and 10.5-month-old testes (n = 4) were measured for each genotype. The results were log-transformed and plotted on the x-axis as log₂(fold change) and on the y-axis as -log₁₀(p-value) (Welch’s t test). The protein enrichment thresholds were set at a fold change > |2| and a p-value < 0.05. Proteins common to Fig. 4d were annotated.
