Fig. 5

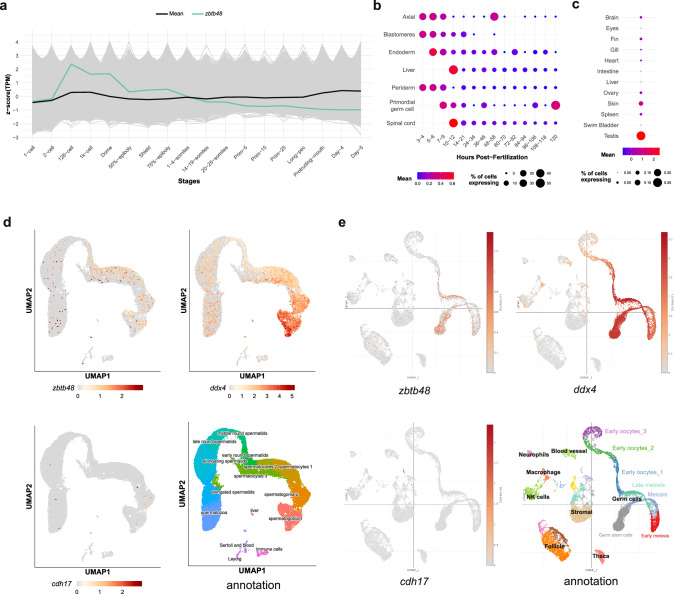

Fig. 5 Spatiotemporal expression of zbtb48 transcripts in larvae and adults.

a Developmental expression profile with zbtb48 mRNA highlighted (green thick line) in whole larvae replotted from previously published data (White et al.). Heatmap of zbtb48 expression in different tissues during the first five days of development (b) based on data from Farrell et al. and Sur et al. or in adult tissues (c) based on data from Jiang et al. d UMAP plots of single-cell RNA sequencing (scRNA-seq) of testes from 5- to 22-month-old fish. Figures were downloaded from the public website (Sposato et al.). e UMAP plots of scRNA-seq data from ovaries of 40 dpf fish. Figures were downloaded from a public website (Liu et al.). For d and (e), the top left panel shows the zbtb48 mRNA expression level, the top right panel shows ddx4 (also known as vasa, which is highly expressed in germ cells), the bottom left panel shows cdh17 (not expressed in germ cells), and the bottom right panel shows the cell population annotation.
