ZFIN Image: She et al., 2025, Fig. 6


Figure Caption

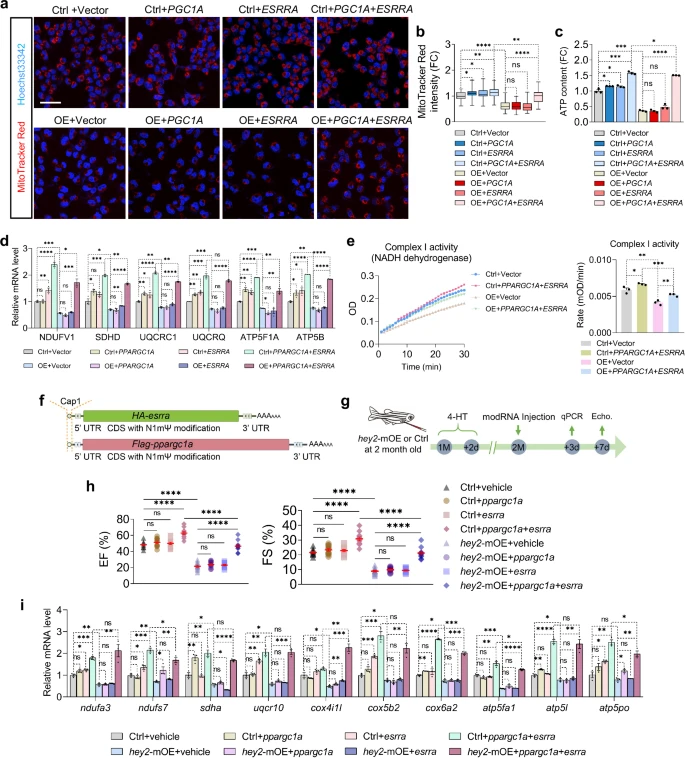

Fig. 6 Increased PPARGC1 and ESRRA alleviate mitochondrial and cardiac dysfunction due to Hey2 overexpression.a MitoTracker Red CMXRos staining measuring the mitochondrial mass of control AC16 or HEY2-OE AC16 cells transfected with control vectors, PPARGC1A or ESRRA vectors, as well as PPARGC1A and ESRRA plasmids together. Scale bar: 50?�m. b Quantification of MitoTracker Red fluorescent intensity of transfected HEY2-OE AC16 cells and control AC16 cells. Data were relative to fluorescent intensity in control group. n?=?38 (ctrl+vector, OE?+?PPARGC1A?+?ESRRA), n?=?41 (ctrl+PPARGC1A), n?=?39 (ctrl+ESRRA), n?=?43 (the rest groups). Box plots displayed median � interquartile range (IQR), with whiskers extending to the minimum and maximum values. *P?

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Nat. Commun.
