ZFIN Image: She et al., 2025, Fig. 3


Figure Caption

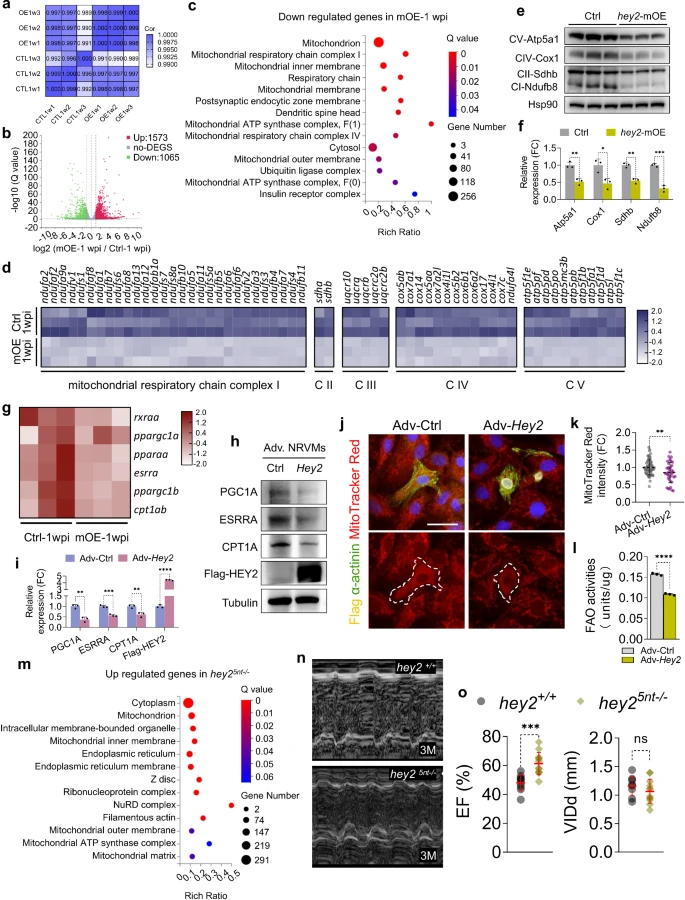

Fig. 3 Hey2 preserves cardiac homeostasis by negatively regulating mitochondrial respiration pathways.a Pearson correlation coefficients analysis showing the correlation between biological replicates of aligned RNA-seq data form hey2-mOE and control hearts. Correlation coefficient closer to 1 indicates better agreement. 3 biological replicates. b Volcano plot of expressed genes in hey2-mOE-1 wpi and control hearts. The colored dots were the differentially expressed genes (DEGs). Red: upregulated DEGs, green: downregulated DEGs. The horizontal dot line indicated Q??1.5 and Q??1.4 and Q?
