ZFIN Image: Widziolek et al., 2025, Fig 2


Figure Caption

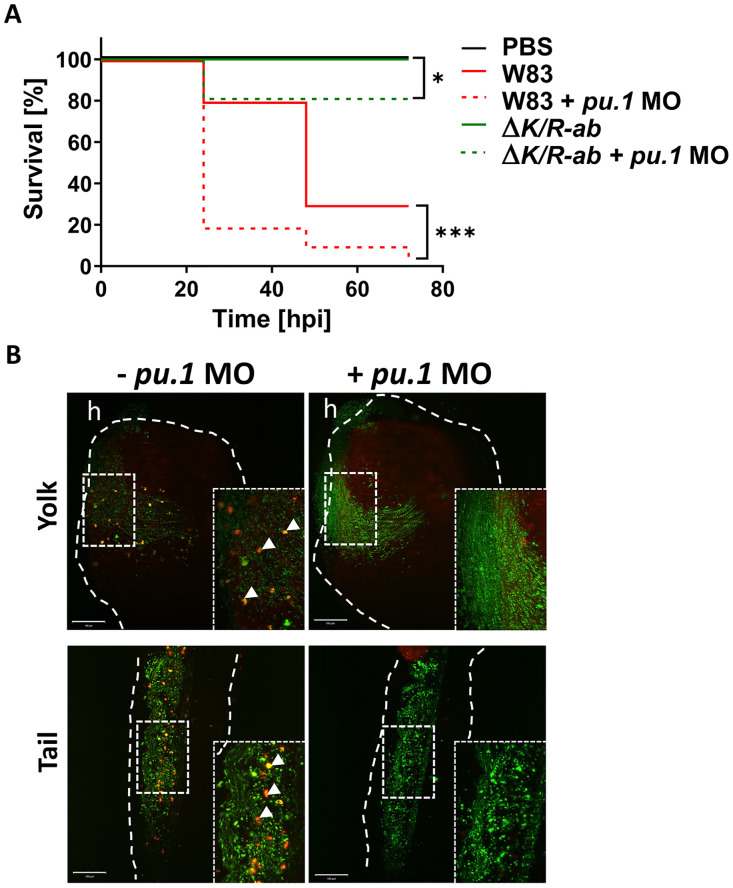

Fig 2 Myeloid cell-depleted zebrafish larvae are more susceptible to Porphyromonas gingivalis (Pg) infection.

(A) Kaplan-Meyer survival plot of pu.1 MO-treated or PBS-injected control zebrafish larvae upon systemic infection with the wild-type Pg W83 or ΔK/R-ab. Survival plots were analysed by log-rank test.*p≤0.05,***p≤0.001; hpi- hours post infection. (B) Representative images of the yolk and tail region of pu.1 MO-treated and untreated zebrafish larvae 2 hpi with fluorescein-SE (green) and pHrodo (red) dual-stained ΔK/R-ab. The untreated larvae display orange dots (white arrows) representing phagocytosed (phagosome acidified) ΔK/R-ab. Phagocytosed ΔK/R-ab were not detected in pu.1 MO due to removal of myeloid cells. White dashed lines indicate yolk or tail areas. Boxes show zoomed regions of the images. h-heart. Scale bar = 100 μm.
