Fig. 6

ID: ZDB-IMAGE-250203-36
Publication: Naef et al., 2025 - Modeling sacsin depletion in Danio Rerio offers new insight on retinal defects in ARSACS
All Figures: Figures for Naef et al., 2025


Figure Caption

Fig. 6

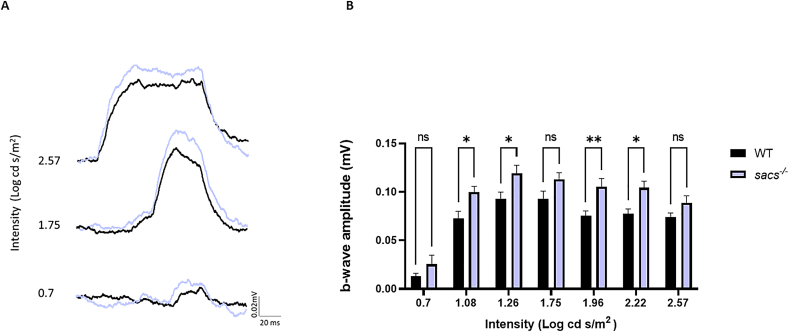

ERG response is increased in sacs^-/- larvae. (A) Representative ERG traces at low, medium and maximum light intensity from control (black), sacs^-/- (blue) at 120 hpf. (B) Averaged ERG b-wave amplitudes from control (black), sacs^-/- (blue) larvae. Sacs^-/- mutants produce an increase of the ERG b-wave amplitude compared with control throughout all light intensities tested (*p < 0.05, **p < 0.01). Data were collected from three independent experiments (N = 30 for each group, sacs^-/- and controls). For statistical comparison, a two-way ANOVA test was used. (ns: not significant; SI unit for luminance is candela per square meter (cd/m²)). (For interpretation of the references to colour in this figure legend, the reader is referred to the web version of this article.)

Figure Data

Phenotype details
