Fig. 5

ID

ZDB-IMAGE-250203-35

Antibodies

Publication

Naef et al., 2025 - Modeling sacsin depletion in Danio Rerio offers new insight on retinal defects in ARSACS

All Figures

Figures for Naef et al., 2025


Figure Caption

Fig. 5

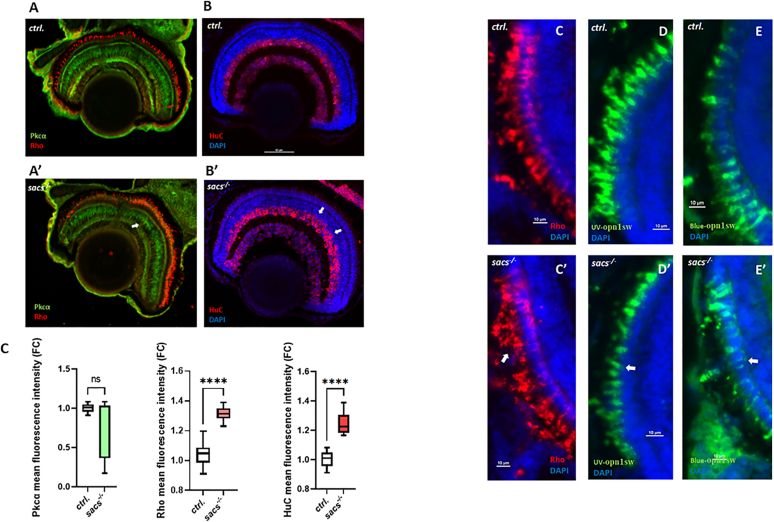

Sacsin deficiency alters cell fate and photoreceptor structure in zebrafish retina (A) Representative confocal images of the retina of sacs^-/- zebrafish obtained after immunostaining of rods with a rhodopsin antibody (red) and with PKC-α to label bipolar cells. (B) Immunostaining of amacrine cells with a HuC antibody (red). Nuclei were highlighted with DAPI·(C) Analysis of fluorescence mean intensity in knockout larvae compared to controls. (D-F′) Representative confocal images of the retina of sacs^-/- zebrafish obtained after immunostaining of rods with a rhodopsin antibody (red) and cones (Uv-opn1sw and Blue-opn1sw) in green. Scale bar = 50 μm (A-B′) and 10 μm (C-D′). (For interpretation of the references to colour in this figure legend, the reader is referred to the web version of this article.)

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Neurobiol. Dis.
