ZFIN Image: Tanaka et al., 2024, Figure 3.


Figure Caption

Figure 3.

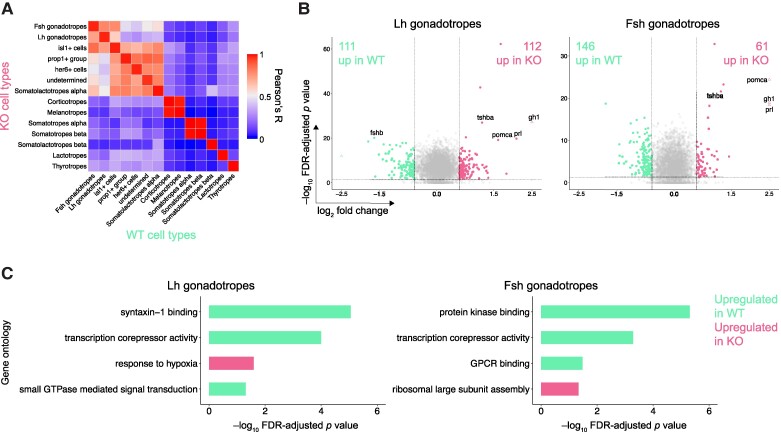

Major differences between WT and gnrh3^−/− pituitaries. (A) Heatmap illustrating Pearson's correlations in gene expression between the WT and gnrh3^−/− cell types. (B) Volcano plots representing differentially expressed genes, DEGs, defined by P < .05 and fold change > 1.5 in the gnrh3^−/− LH gonadotropes (left) and FSH gonadotropes (right) vs those of the WT pituitary sample. (C) Bar plots representing significant enrichment of DEGs in specific Gene Ontology categories. ***P < .001.

Abbreviations: DEG, identified differentially expressed gene; WT, wild-type.
