Figure 2.

ID

ZDB-IMAGE-241106-20

Genes

grm6a
grm6b

Publication

Haug et al., 2024 - Differential Localization and Functional Roles of mGluR6 Paralogs in Zebrafish Retina

All Figures

Figures for Haug et al., 2024


Figure Caption

Figure 2.

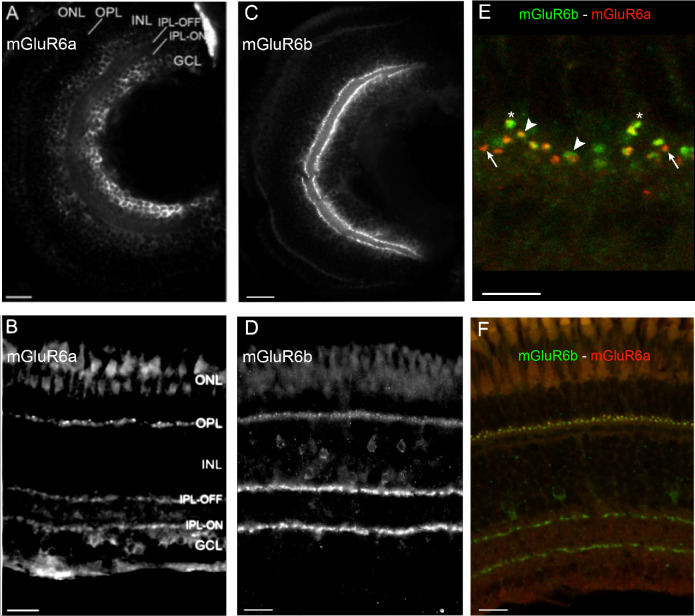

Retinal expression of mGluR6 paralogs in larval and adult zebrafish. (A–D) Immunohistochemical labeling of mGluR6a on larval (A) and adult (B) and mGluR6b on larval (C) and adult (D) retinal cross sections. (E, F) Costaining of mGluR6a (red) and mGluR6b (green) on adult retinal cross sections. In (E), a zoom-in on the OPL shows where mGluR6b (asterisk) and mGluR6a (long arrow) do not overlap and where mGluR6a and mGluR6b expression overlaps (large arrowhead) (see Supplementary Table S2). GCL, ganglion cell layer; INL, inner nuclear layer; IPL‐OFF, off‐layer of the inner plexiform layer; IPL‐ON, on‐layer of the inner plexiform layer; ONL, outer nuclear layer; OPL, outer plexiform layer. Scale bars: 20 µm, except E, where the scale bar = 5 µm.
