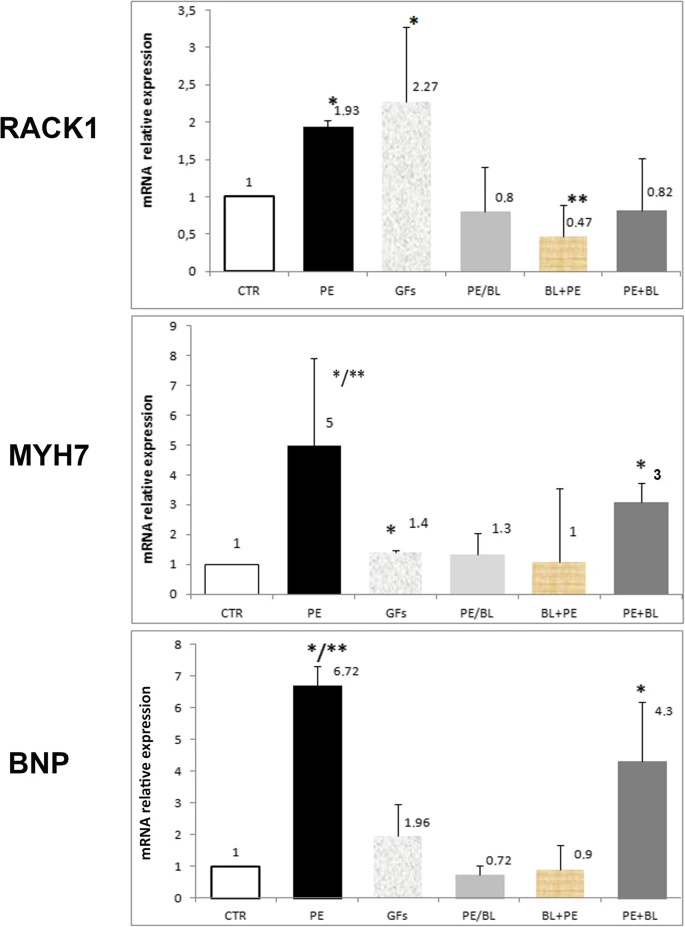

Fig. 1 Quantitative RT?PCR analysis of RACK1 and hypertrophy markers. The graph shows the relative expression of Rack1 (RACK1), myosin heavy chain 7 (MYH7), and brain natriuretic peptide (BNP). In the PE-treated samples, a significant increase in markers was observed compared with those in the control samples (PE vs. CTR; PE vs. all groups p < 0.001,*). The GFs group, despite the variability of the samples, was significantly greater than the CTR and the other groups were, except for the PE group (GFs vs. CTR, PE/BL, PE + BL BL + PE, *, p < 0.01). The PE/BL and PE + BL groups presented nonsignificant modifications, whereas the BL + PE group presented a reduction (BL + PE vs. CTR, **, p < 0,05). MYH7 expression was significantly upregulated in the PE and PE + BL groups (PE vs. CTR, *, PE vs. all groups, **, p < 0.001; PE + BL vs. all groups without PE, *, p < 0.005). Compared with the CTR group, the GFs group presented a slight increase (GFs vs. CTR, *, p < 0.05). BNP was increased in the PE group (PE vs. CTR; p < 0.001; *; PE vs. all other groups). **, p < 0.05) and the PE + BL group (PE + BL vs. CTR, *; p < 0.01). Conversely, this upregulation was partially repressed after pre- and cotreatment with BL. The GFs also presented a greater mean than did the control, but the variability among the samples was not statistically significant. Hearts from the fish in each group (n = 6) were subjected to triplicate experiments?statistical analysis: ANOVA with the Bonferroni correction.
Figure Caption
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Sci. Rep.
