ZFIN Image: Wijerathna et al., 2024, Figure 11


Figure Caption

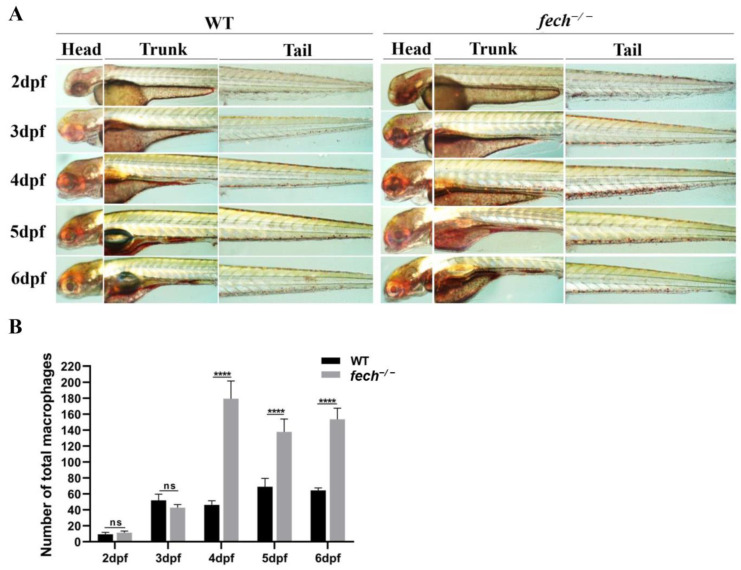

Figure 11

Changes in temporal macrophage production in fech^−/− larvae. (A) Alterations in macrophage production in the heads, trunks, and tails of WT and fech^−/− zebrafish larvae during different developmental stages. (B) The total number of macrophages counted in WT and fech^−/− larvae at various developmental stages. The highest macrophage counts for fech^−/− larvae, compared with those for the WT, were observed at 4 dpf. Total macrophage counts are presented as the means ± SD (n = 5). Statistical significance between WT and fech^−/− larvae was analyzed using Student’s t-test (ns, non-significant; ****, p ≤ 0.0001).
