ZFIN Image: Armistead et al., 2024, Fig. 2


Figure Caption

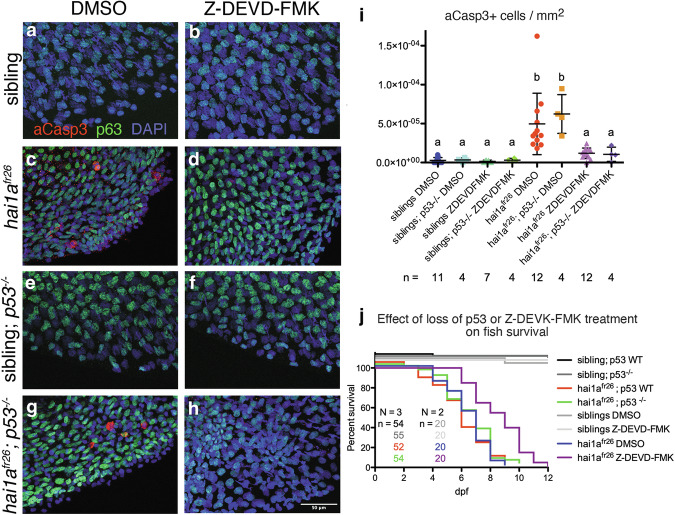

Fig. 2 Cell death in hai1a^fr26 mutants is caspase-dependent and tp53-independent.

a–h Apoptotic cells in the caudal fin fold of 4 dpf embryos, immunostained for aCasp3 (red), p63 (green) and DAPI (blue), with tp53 mutation or upon treatment with ZDEVD-FMK to inhibit apoptosis. Scale bar = 50 μm. i Quantification of the numbers of aCasp3-positive cells in the tail fins of embryos, normalised to fin area. Means were compared using one-way ANOVA with post-hoc Tukey’s multiple comparison test. j Survival curves showing the effects of tp53 mutation or ZDEVD-FMK treatment on embryo viability.
