Figure Caption

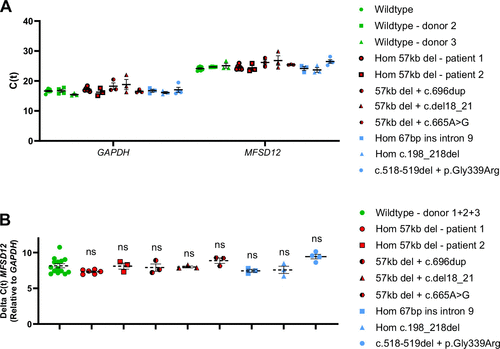

Fig. 1 Basal MFSD12 mRNA levels are comparable between WT and CYS ciPTECs. A: ciPTECs were derived from the urine of three control individuals (WT) and eight patients with cystinosis with different CTNS genotypes. C(t)s are shown for GAPDH (left) and MFSD12 (right). Each dot represents a biological replicate and means with SE are shown. B: ΔC(t)s were pooled from the WT ciPTECs and compared with the CYS ciPTECs (one-way ANOVA, ns = no significance). C(t), threshold cycle; CYS, cystinosis; ciPTEC, conditionally immortalized proximal tubular epithelial cell; WT, wild type.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Am. J. Physiol. Renal Physiol.
