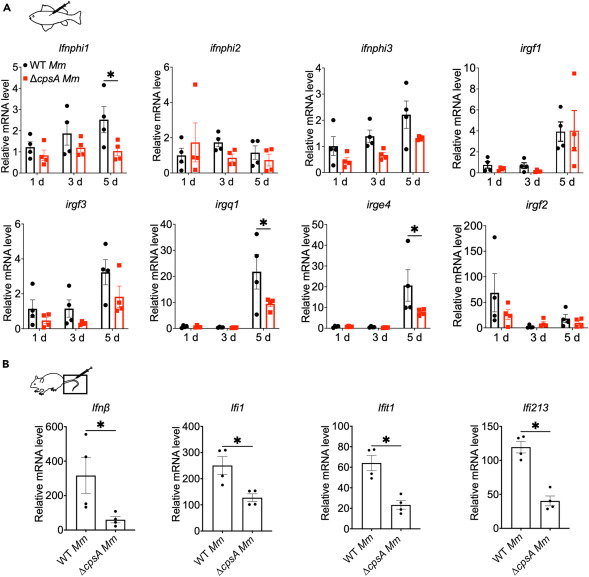

Fig. 4 CpsA-dependent type I IFNs and ISGs activation in vivo (A) Adult zebrafishes were infected with WT or ?cpsA Mm strains (104 CFU) and the mRNA levels of type I IFNs and ISGs of the fish body were determined by RT-qPCR and normalized to gapdh. (B) C57BL/6J mice were infected with WT, ?cpsA Mm strain (?3 × 108 CFU/mouse) via tail vein injection. The mRNA levels of type I IFNs and ISGs of the tail were determined by RT-qPCR. In A and B, data shown are mean fold increase over PBS-treated animals ± SEM. A, ?p < 0.05 by two-way ANOVA with multiple comparisons test, and B, ?p < 0.05 by unpaired t tests.
Figure Caption
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ iScience
