Figure Caption

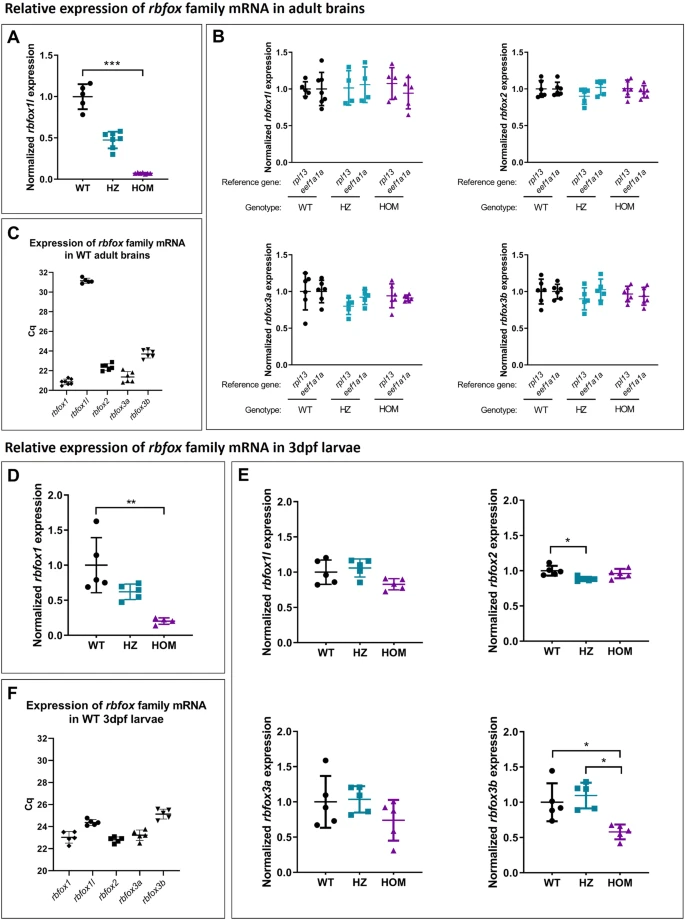

Fig. 2 Relative expression of rbfox family mRNAs in adult brains and 3dpf larvae from the rbfox1sa15940 line. Adult brains: Relative brain expression of (A) rbfox1, (B) rbfox1l, rbfox2, rbfox3a and rbfox3b mRNA in adult brains. mRNA expression is normalised to the average expression of the mRNA in wild-type fish and to the reference housekeeping genes ribosomal protein L13a (rpl13) (A, B) or the eukaryotic translation elongation factor 1 alpha 1a (eef1a1a) (B). Kruskal-Wallis test followed by Dunn’s multiple comparison test. n = 5-7 WT, 5-7 HZ, 5-7 HOM. Mean ± SD. C Brain expression of the rbfox family mRNAs in adult wild-type zebrafish brains represented as the quantification cycle value for each gene. n = 7 WT, 7 HZ, 7 HOM. Mean ± SD. 3dpf larvae: Relative brain expression of (D) rbfox1, (E) rbfox1l, rbfox2, rbfox3a and rbfox3b mRNA in 3 dpf whole larvae. mRNA expression is normalised to the average expression of the mRNA in wild-type fish and to the reference housekeeping gene ubiquitin-conjugating enzyme E2A (ube2a). Kruskal-Wallis test followed by Dunn’s multiple comparison test. n = 5 WT, 5 HZ, 5 HOM. Mean ± SD. F Brain expression of the rbfox family mRNAs in 3 dpf wild-type larvae represented as the quantification cycle value for each gene. n = 5 WT, 5 HZ, 5 HOM. Mean ± SD. Each point represents the results from a pool of 10 larvae.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Transl Psychiatry
