Fig 2

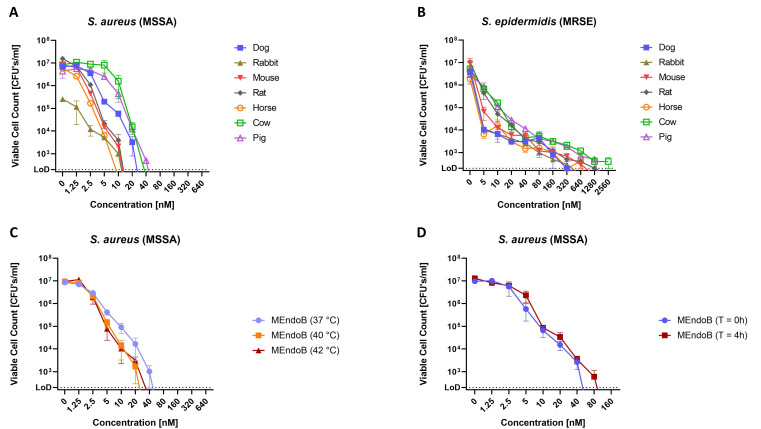

MEndoB kills different staphylococcal species in various animal sera, at elevated temperatures, and remains stable upon storage for 4 h at 37°C in human serum. MEndoB activity in qKAs at 37°C against S. aureus ATCC 12600 (A) and S. epidermidis ATCC 35984 (B) in seven different animal sera and at 37°C, 40°C, and 42°C against S. aureus ATCC 12600 in human serum (C). Data shown in panel C for 37°C corresponds to data from Fig. 1B. Activity of MEndoB after incubation in human serum for 4 h at 37°C was determined in qKAs at 37°C against S. aureus ATCC 12600 (D). The limit of detection was 200 CFUs/mL (dotted line), and error bars indicate the standard error of the mean from two (A and B) and three (C and D) biological replicates.
