Figure 6

ID: ZDB-IMAGE-240113-19
Publication: Madera et al., 2023 - Gene Characterization of Nocturnin Paralogues in Goldfish: Full Coding Sequences, Structure, Phylogeny and Tissue Expression
All Figures: Figures for Madera et al., 2023


Figure Caption

Figure 6

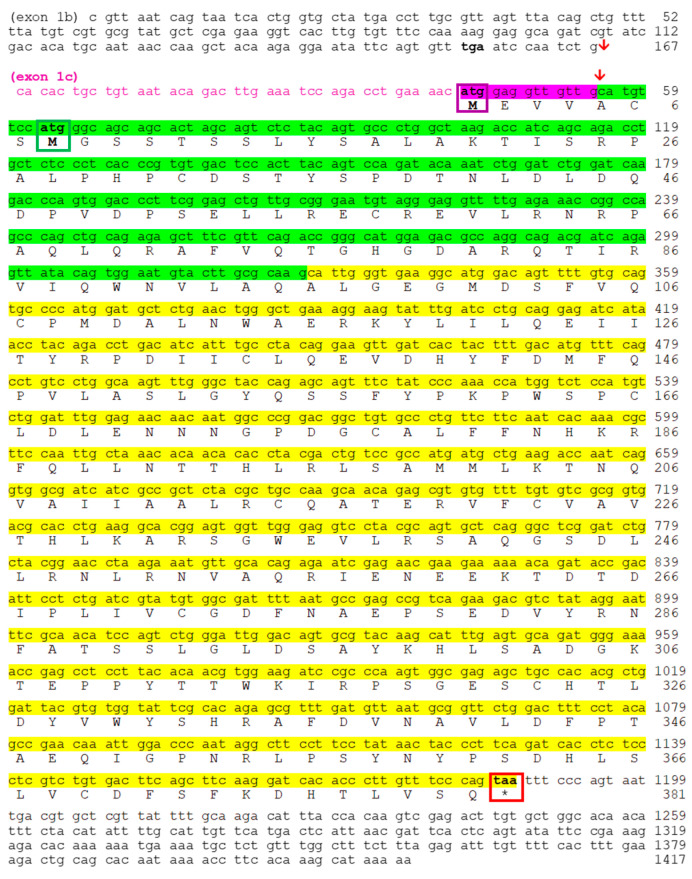

Nucleotide and deduced amino acid sequences of goldfish noc-bb. Both sequences are accessible through GenBank. Splice Variant III is composed of exon 1c in purple (coding sequence with purple background), exon 2 (green background), and exon 3 (yellow background) (accession no. OR651299). Splice Variant II is composed of non-coding exon 1b, exon 2, and exon 3 (accession no. OR651300). Red arrow indicates the insertion point of exon 1b or exon 1c on exon 2. Bold font indicates stop codons upstream of initial methionine codon. Coding region extends from the first methionine residue (purple box for variant III, green box for variant II) to the stop codon (* and red box). Backgrounds colored purple, green and yellow indicate exons 1c, 2, and 3, respectively.
