ZFIN Image: Lim et al., 2023, Fig. 8.


Figure Caption

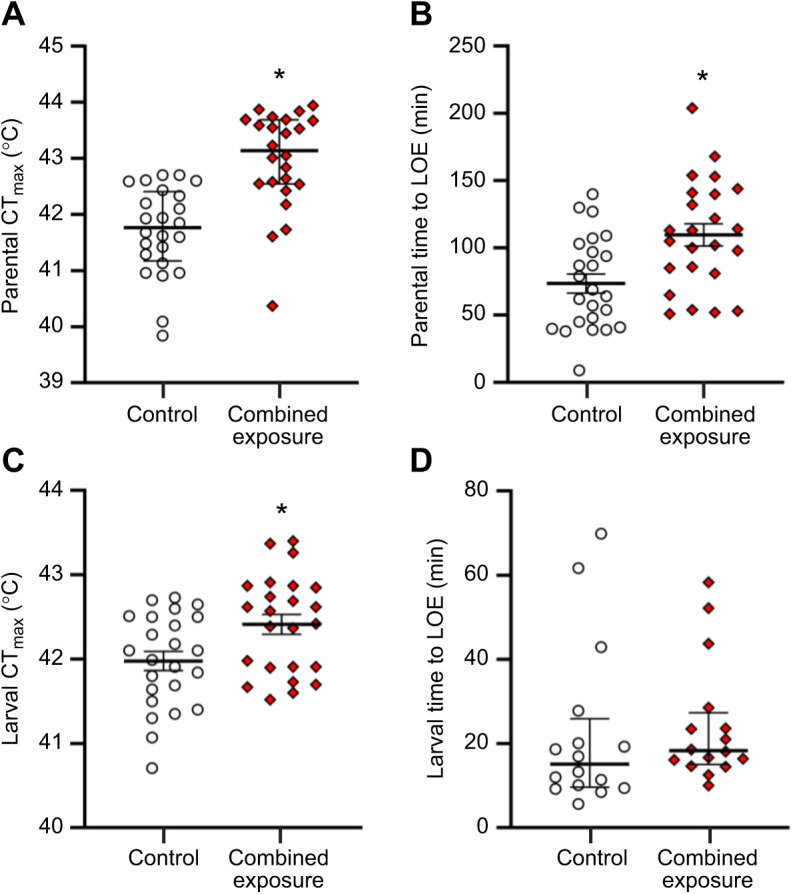

Fig. 8.

Effects of parental treatment on parental adult and larval offspring stress tolerance. (A) Critical thermal maxima (CT_max) and (B) hypoxic time to loss of equilibrium (LOE) of parental adult zebrafish exposed to either control or combined exposure conditions for 14 days, and (C) CT_max and (D) hypoxic time to LOE for 5 days post-fertilization (dpf) larvae derived from adult zebrafish exposed to either control or combined exposure conditions for 14 days. Tolerance values were compared with Mann–Whitney rank sum tests (A: P<0.001; D: P=0.235) or two-tailed t-tests (B: P=0.002; C: P=0.011). Differences between treatments for a given parameter are indicated by an asterisk. Data are medians and interquartile ranges in A and D and means±s.e.m. in B and C (all n=24, except larvae time to LOE, n=16).
