Figure 2

ID
ZDB-IMAGE-230217-34
Source
Figures for Colella et al., 2023
Figure Caption

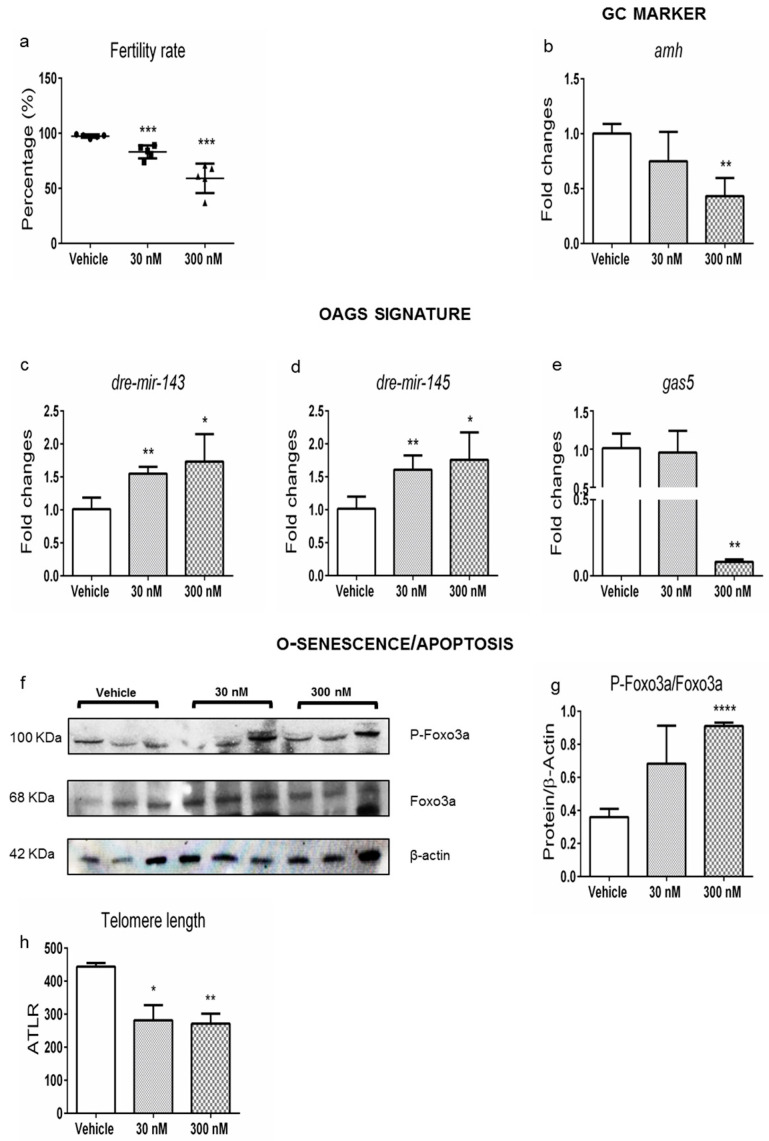

Figure 2

Developmental and lifelong exposure to CPF in zebrafish ovaries promotes POA. (a) Graph represents the fertilization percentage estimated by counting the number of fertilized eggs obtained from five independent matings involving zebrafish females exposed to CPF vs. females not exposed (Vehicle). (b) Granulosa cell markers (amh) were detected by RT-qPCR. (ce) OAGS genes (dre-mir-143, dre-mir-145, and gas5) were verified by RT-qPCR. (f,g) Representative Western blot analysis showing the level of Foxo3a/P-Foxo3a protein following CPF treatment (n = 3/group). (h) Telomere length was measured from total genomic ovaries DNA by using a qPCR. Data were obtained normalizing using tubaI for mRNA, β-actin for proteins, and U6 for miRNA). Data are mean ± s.d. with five animals per group. Significant differences are indicated with * p < 0.05; ** p < 0.01, *** p < 0.001, and **** p < 0.0001 using Student’s t-test.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Mol. Sci.
