Fig. 8

ID

ZDB-IMAGE-221218-9

Genes

hapln1a
nrg1

Publication

Xia et al., 2022 - Activation of a transient progenitor state in the epicardium is required for zebrafish heart regeneration

All Figures

Figures for Xia et al., 2022


Figure Caption

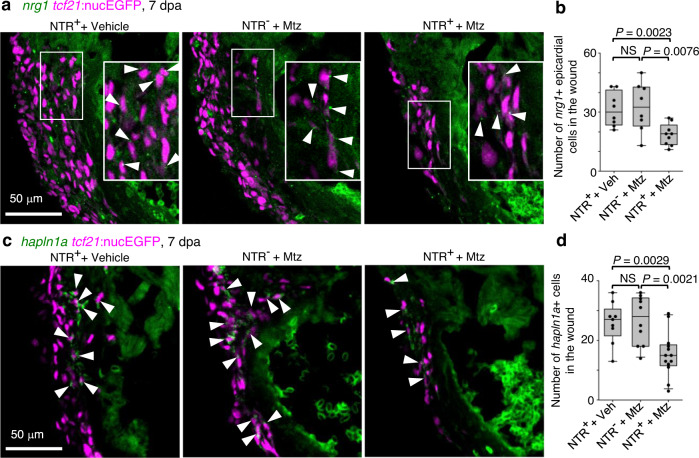

Fig. 8 a Section images of the injury site showing HCR staining of nrg1 in green and tcf21:nucEGFP in magenta. The framed regions are enlarged to show details with arrowheads denoting representative nrg1⁺EGFP⁺ cells. Scale bar, 50 μm. b Quantification of nrg1⁺ epicardial cells in the wound regions shown in a. From left to right, n = 8, 8, and 9, respectively. NS, not significant. Two-tailed Student’s t test. c Section images of the injury site showing HCR staining of hapln1a in green and tcf21:nucEGFP in magenta. Arrowheads indicate representative hapln1a⁺EGFP⁺ cells. Scale bar, 50 μm. d Quantification of hapln1a⁺EGFP⁺ cells in the wound regions shown in c. From left to right, n = 9, 10, and 13, respectively. NS, not significant. Two-tailed Student’s t test. Box plots show the median (center line), upper and lower quartiles (box limits), minimum and maximum values (whiskers), and individual values (points). Source data are provided as a Source data file.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Nat. Commun.
