FIGURE 5

ID

ZDB-IMAGE-220921-55

Genes

Publication

Feng et al., 2022 - The Polycomb group gene rnf2 is essential for central and enteric neural system development in zebrafish

All Figures

Figures for Feng et al., 2022


Figure Caption

FIGURE 5

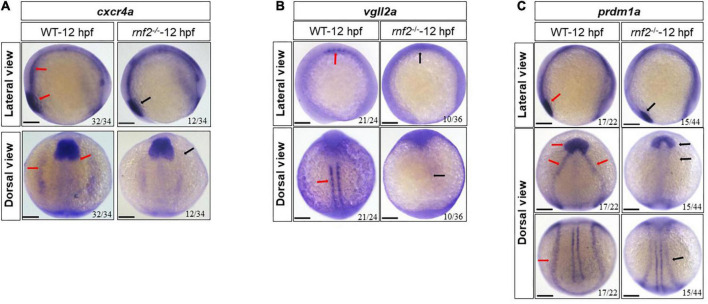

The effect of rnf2 deficiency on differentiation of neural crest in zebrafish embryos. (A) The expression of cxcr4a in rnf2^–/– and WT embryos at 12 hpf. Upper: lateral view, bottom: dorsal view. (B) The expression of vgll2a in rnf2^–/– and WT embryos at 12 hpf. Upper: lateral view, bottom: dorsal view. (C) The expression of prdm1a in rnf2^–/– and WT embryos at 12 hpf. Upper: lateral view; middle: dorsal anterior view; bottom: dorsal posterior view. Red arrows showing the expression of cxcr4a, vgll2a, and prdm1a in 12 hpf WT embryos, black arrows showing the reduced expression of cxcr4a, vgll2a, and prdm1a in 12 hpf rnf2^–/– mutant embryos. The experiments were repeated at least three times. Scale bar = 0.1 mm.
