Figure 6

ID

ZDB-IMAGE-220814-5

Genes

mCherry

Publication

Zhang et al., 2022 - A transgenic zebrafish for in vivo visualization of cilia

All Figures

Figures for Zhang et al., 2022


Figure Caption

Figure 6

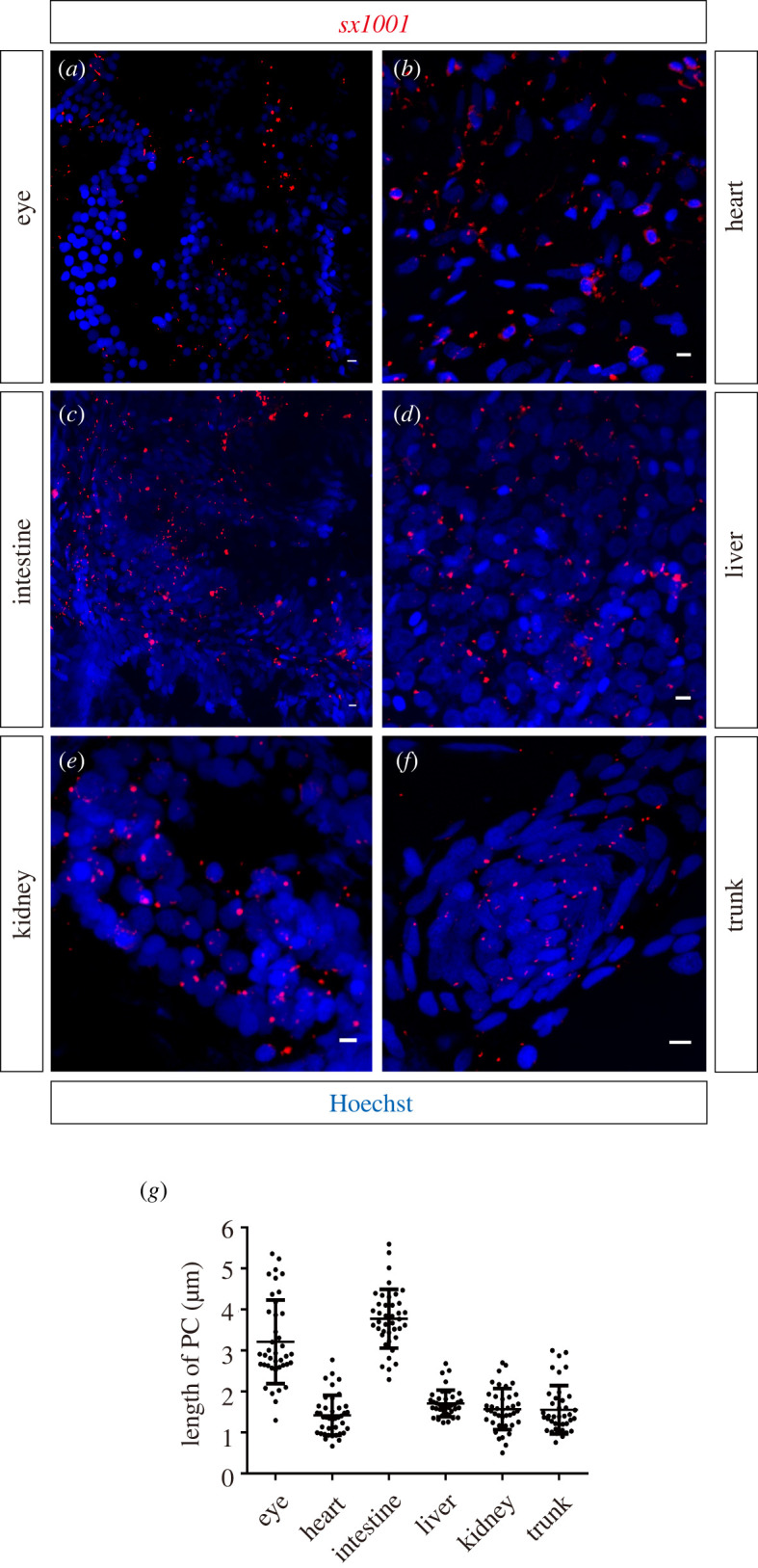

Cilia in adult sx1001 tissue were uniformly labelled. (a–f) Transverse cryosection of different tissues to observe the distribution of sx1001 labelled (red) cilia in adult zebrafish (n = 3 for each sample). The nucleus was stained by Hoechst (blue). Scale bar, 5 μm. (a) Cilia at the photoreceptor cell layer; (b) cilia of myocardial cell cilia; (c) cilia structure of the small intestine; (d) cilia of liver cells; (e) cilia of renal cell; (f) cilia of skeletal muscles. (g) The length of tissue cilia was measured using the MIP method previously described. Each sample has been measured with the length of 40 straight primary cilia (n = 5 for each sample).
