Figure 4—figure supplement 3.

ID: ZDB-IMAGE-220726-40
Publication: Satou et al., 2022 - A viral toolbox for conditional and transneuronal gene expression in zebrafish
All Figures: Figures for Satou et al., 2022


Figure Caption

Figure 4—figure supplement 3. Expression pattern of <italic toggle='yes'>vglut1</italic> and <italic toggle='yes'>vglut2</italic> in olfactory bulb and Dp.

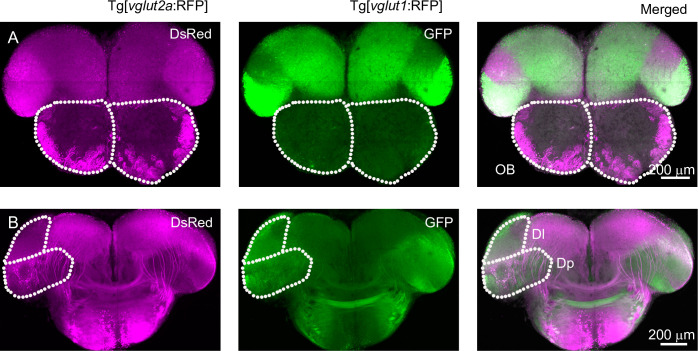

(A) Coronal cross sections through the OB and anterior telencephalon from Tg[vglut2a:RFP; vglut1:GFP] double transgenic fish. Note that vglut2a (magenta) is expressed by axons of olfactory sensory neurons innervating glomeruli in the OB and by a subset of mitral cells, while expression of vglut1 (green) in the OB is weak or absent. Dotted lines outline OBs. (B) More posterior coronal cross sections through the telencephalon of the same fish at the level of Dp. Note that expression of vglut2a and vglut1 in the telencephalon are largely complementary. Neurons in Dp express primarily vglut1. Dotted areas indicate the dorsal lateral telencephalic area (Dl) and Dp.
