FIGURE 1

ID

ZDB-IMAGE-220612-1

Genes

sv2a

Publication

Zhang et al., 2022 - Connectivity Mapping Using a Novel sv2a Loss-of-Function Zebrafish Epilepsy Model as a Powerful Strategy for Anti-epileptic Drug Discovery

All Figures

Figures for Zhang et al., 2022


Figure Caption

FIGURE 1

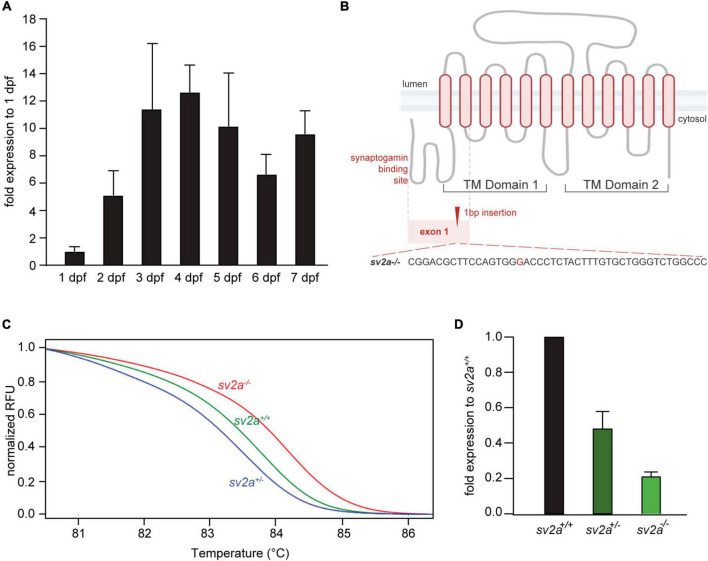

sv2a expression in developing zebrafish larvae (1-7 dpf) and CRISPR-mediated sv2a knockout in zebrafish. (A) qPCR analysis of sv2a mRNA levels in wildtype larvae normalized to 18s and represented as the fold expression to 1 dpf. Values are reported as mean ± SD of three independent experiments. (B) Schematic representation of the SV2A protein with the two distinct transmembrane (TM) domains and the cytosolic synaptogamin binding site. Gray dashed line indicates exon 1 encoding synaptogamin binding domain and the first two TM helices. Red dashed line magnifies the region with the 1 nucleotide insertion (G) at the target site in exon 1. (C) High resolution melting (HRM) curve analysis discriminates sv2a^+/+, sv2a^+/–, and sv2a^–/– zebrafish larvae at 6 dpf. (D) qPCR analysis of sv2a mRNA levels in sv2a^+/+, sv2a^+/–, and sv2a^–/– larvae at 6 dpf normalized to 18s and represented as the fold expression to sv2a^+/+ larvae. Values are reported as the mean ± SD of three independent experiments.
