Figure Caption

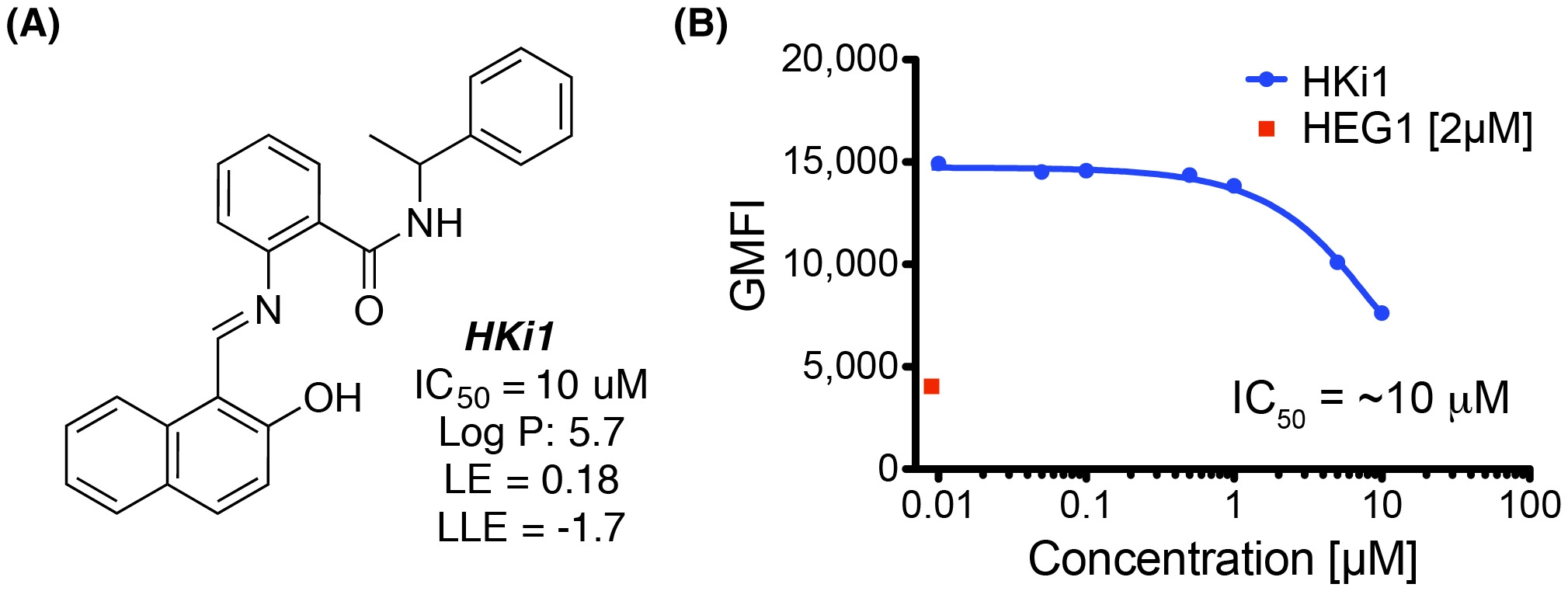

Fig. 2 HKi1 is an inhibitor of the HEG1–KRIT1 interaction. (A) Chemical structure of HKi1. LE = (1.37/HA) x pIC50 where HA is the number of non H atoms present in the ligand; LLE = pIC50-LogP. (B) Competition binding curve of 70 nM EGFP-KRIT1 FERM domain binding to 150 nM HEG1 on the beads with increasing amounts of HKi1. HKi1 had poor solubility in our buffer and concentrations >30 μM could not be reached.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ FASEB Bioadv
