Fig. 3

ID
ZDB-IMAGE-210725-23
Genes
Source
Figures for Wang et al., 2021
Figure Caption

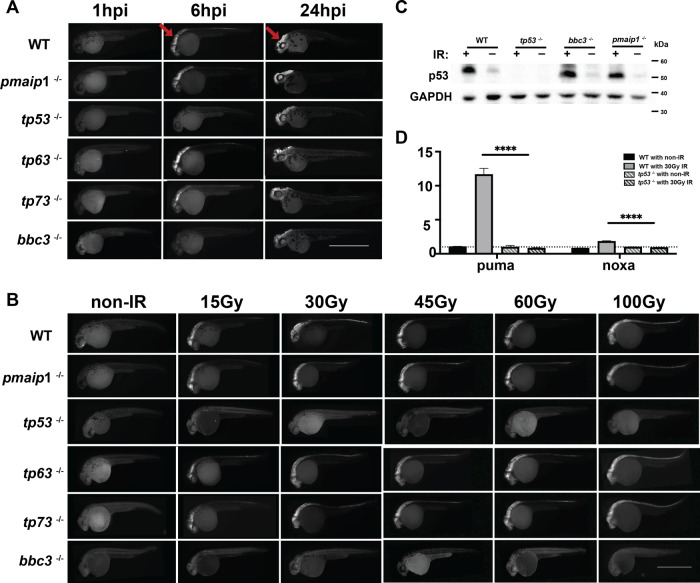

Fig. 3 Loss of puma not noxa rescues IR-induced apoptosis in p53-dependent manner.

A Anti-active Caspase-3 staining on 30 hpf (1 hpi and 6 hpi panel) or 48 hpf (24 hpi panel) embryos. 29 hpf wild-type, pmaip1−/−, tp53−/−, tp63−/−, tp73−/− and bbc3−/− zebrafish embryos were treated with 30 Gy IR-irradiation and fixed at 1 hour post treatment (1 hpi panel); 24 hpf embryos were treated with 30 Gy IR-irradiation and fixed at 6 h (6 hpi panel) or 24 h (24 hpi panel) after treatment. Arrows in WT points out active apoptotic area in head region in WT embryos for 6 hpi and 24 hpi. Scale bar, 1000 μM. B Anti-active Caspase-3 staining of 30 hpf (6 hpi) wild-type, pmaip1−/−, tp53−/−, tp63−/−, tp73−/−, and bbc3−/− zebrafish embryos treated w/o IR (non-IR) and with 15, 30, 45, 60, and 100 Gy IR. Scale bar, 1000 μM. C p53 protein expression level after IR-induction. Western blot analysis was performed using protein extracts from 30 hpf (6 hpi) wild type, tp53−/−, bbc3−/−, and pmaip1−/− zebrafish embryos with (30 Gy) or without IR treatment. D qRT-PCR analysis of puma and noxa after IR-irradiation in zebrafish embryos. 24 hpf wild-type or tp53−/− zebrafish embryos were treated with 30 Gy IR-irradiation and RNA samples for qRT-PCR were harvested at 6 h after IR-irradiation. Expression levels were normalized to GAPDH. n = 6 from ~30 pooled embryos per sample. Bars represent mean ± SEM. ****p < 0.0001.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Cell Death Dis.
