Figure 1 supplement 2 Increased cardiomyocyte (CM) extrusion in <italic toggle='yes'>snai1b<sup>-/-</sup></italic> larvae.

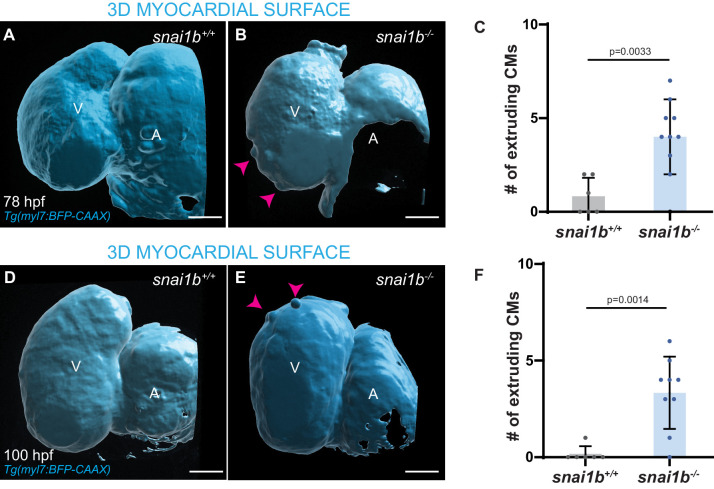

(A–F) 3D surface rendering of the heart at 78 and 100 hpf. snai1b^-/- larvae (B, E) exhibit more extruding CMs (arrowheads) compared with snai1b^+/+ larvae (A, D); quantification (C, F) (C, snai1b^+/+, n = 6; snai1b^-/-, n = 10; F, snai1b^+/+, n = 12; snai1b^-/-, n = 10). Plot values represent means ± S.D.; p-values determined by Student’s t-test. Scale bars: 20 µm. V: ventricle; A: atrium; n: number of embryos.
