Figure 3—figure supplement 10.

ID: ZDB-IMAGE-210327-98
Source: Figures for Uriu et al., 2021


Figure Caption

Figure 3—figure supplement 10. Weak dependence of FRS and PLD on the shape parameter <italic>k</italic> of the frequency profile.

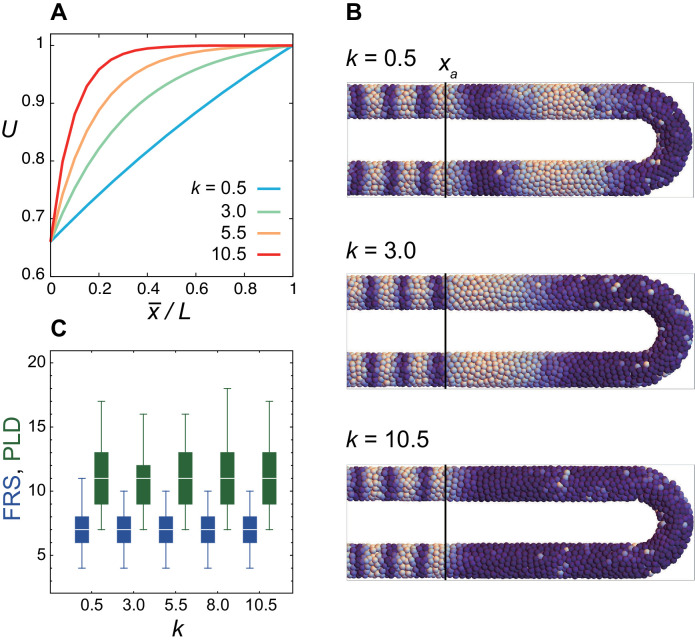

(A) Frequency profile U(x) for different values of k in Equation (11) in the Materials and methods. x-=x-xa where xa is the position of the anterior end of the PSM. (B) Snap shots of spatial phase patterns with different values of k. Simulations were started from synchronized initial conditions for illustration. Color scale as in Fig. 2A, xa is indicated by the black vertical lines. (C) Dependence of FRS (blue) and PLD (green) on k in resynchronization simulations from random initial conditions. The box-whisker plot indicates (0.05, 0.25, 0.75, 0.95) quantiles of FRS and PLD for 100 realizations of simulations. The white bars indicate median.
