Figure 3—figure supplement 8.

ID: ZDB-IMAGE-210327-96
Publication: Uriu et al., 2021 - From local resynchronization to global pattern recovery in the zebrafish segmentation clock
All Figures: Figures for Uriu et al., 2021


Figure Caption

Figure 3—figure supplement 8. Coupling strength <inline-formula><mml:math id='inf69' xmlns:mml='http://www.w3.org/1998/Math/MathML'><mml:msub><mml:mrow><mml:mi>κ</mml:mi></mml:mrow><mml:mrow><mml:mn>0</mml:mn></mml:mrow></mml:msub></mml:math></inline-formula> influences both FRS and PLD.

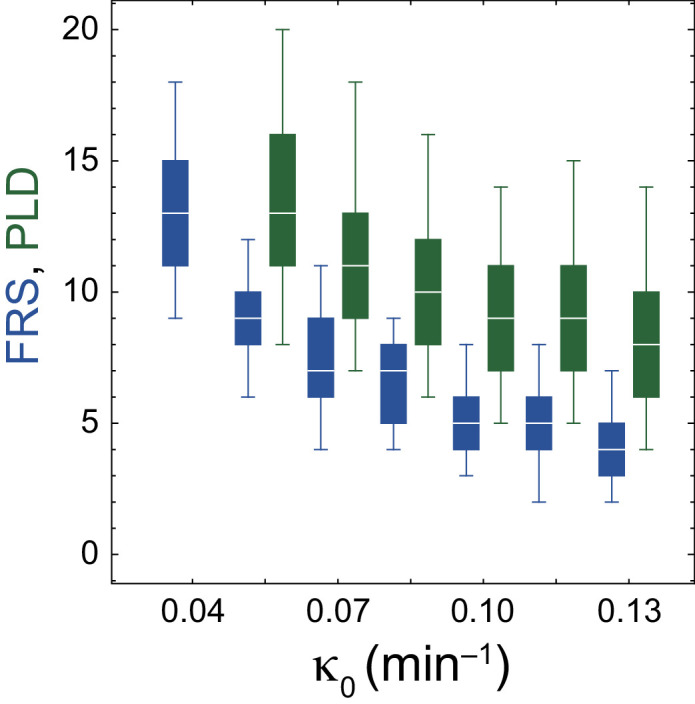

The dependences of FRS (blue) and PLD (green) on κ0 are shown. The box-whisker plot indicates (0.05, 0.25, 0.75, 0.95) quantiles of FRS and PLD for 100 realizations of simulations. The white bars indicate median. Note that PLD for κ0=0.04 was not well-defined because a low value of coupling strength could not maintain a higher level of synchrony Z(t) > Z_c in the presence of cell addition with random phase values. Even when a simulation was started from the completely synchronized state, Z(t) sometimes became lower than Z_c. Therefore, the result of PLD for a such small value of κ0 is not plotted in the figure.
