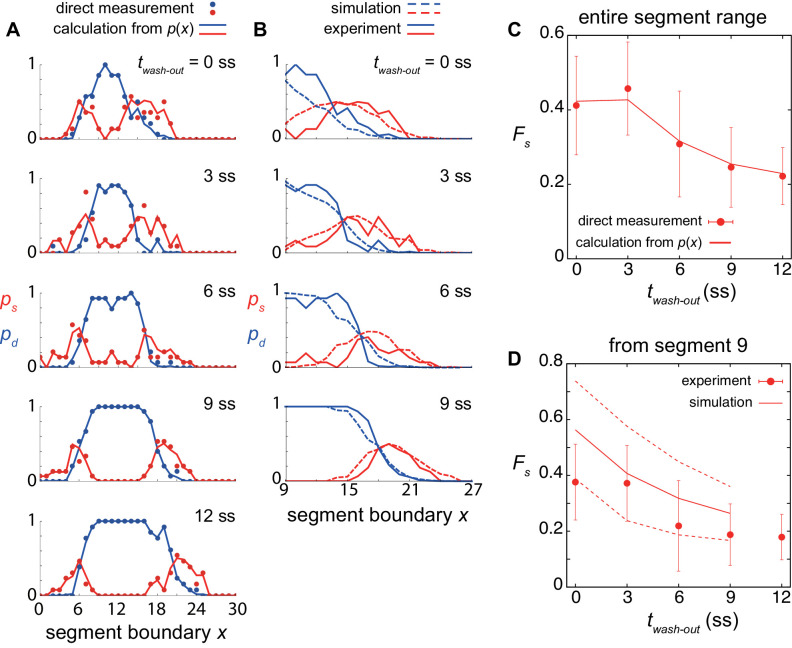

Figure 4—figure supplement 8.

Figure 4—figure supplement 8.

(A) Spatial probability distribution of single defects p_s (red lines) and double defects p_d (blue lines) for different DAPT washout time. p_s and p_d were calculated from the experimental spatial distributions of defective segments. Filled circles indicate direct measurement of p_s (red) and p_d (blue). (B) Comparison of p_s (red) and p_d (blue) between simulations (dotted lines) and experiment (solid lines). (C) Dependence of fraction of single defects F_s on DAPT washout timing. Circles indicate F_s obtained by direct measurement. Error bars indicate the standard deviation. The line indicates F_s calculated from the spatial distribution of defective segments. See Supporting Information for the calculation. F_s was computed using entire segment range. (D) Comparison of F_s obtained by the physical model (lines) with that in experiment (circles). The solid and dotted lines indicate mean and standard deviations of simulation data, respectively. F_s was measured from segment 9 for the comparison between simulations and experiment.
