Fig. 5

ID

ZDB-IMAGE-210131-9

Genes

fosab
hbbe3

Publication

Facchinello et al., 2021 - Efficient clofilium tosylate-mediated rescue of POLG-related disease phenotypes in zebrafish

All Figures

Figures for Facchinello et al., 2021


Figure Caption

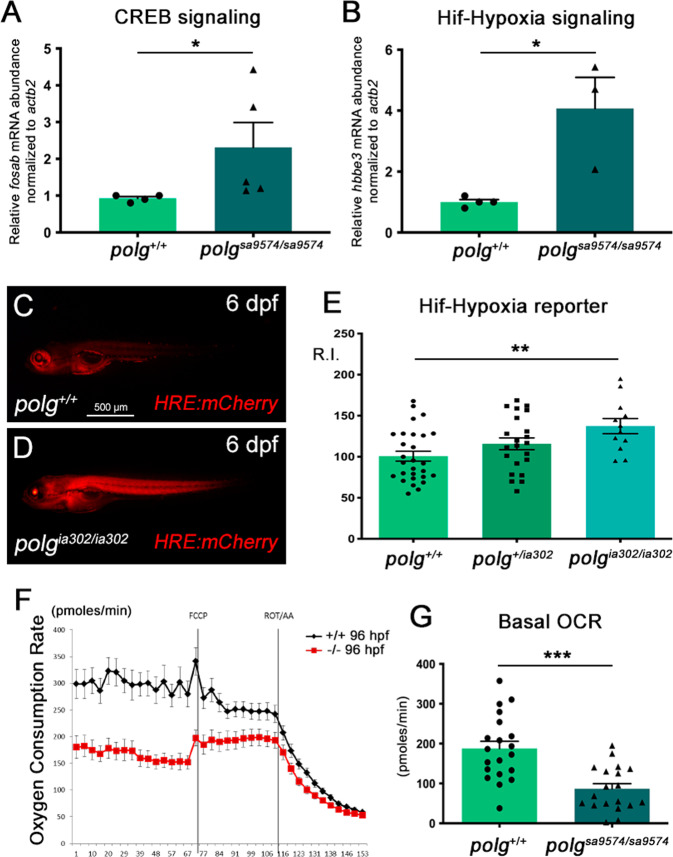

Fig. 5 Altered signalling and mitochondrial dysfunction in <italic>polg</italic> mutants.

A The CREB signalling-targeted gene fosab is upregulated in 4 dpf polg^{sa9574/sa9574} mutants, compared to controls. B The Hif-Hypoxia signalling-targeted gene hbbe3 is upregulated in 4 dpf polg^sa9574/sa95 mutants, compared to controls. C–E Hif-Hypoxia signalling increases also in 6-dpf polg^ia302/ia302 mutants, as shown by the Hif-Hypoxia-responsive transgene HRE:mCherry. E Chart reporting the HRE fluorescence relative intensity (R.I.). F Diagram depicting the oxygen consumption rate (OCR) profile throughout Seahorse assay in 4 dpf wt and polg^{sa9574/sa9574} embryos under basal conditions, FCCP (p-triFluoromethoxyCarbonylCyanide Phenylhydrazone)-induced maximal respiratory capacity stimulation and ROT/AA (Rotenone/Antimycin A)-mediated inhibition. Three independent experiments were performed (N = 20). G Quantification of basal respiration in wt and polg^{sa9574/sa9574} mutants (N = 20, in triplicate).

Figure Data

Expression / Labeling details

Phenotype details
