Figure 3—figure supplement 1.

ID: ZDB-IMAGE-200523-36
Source: Figures for Koizumi et al., 2016


Figure Caption

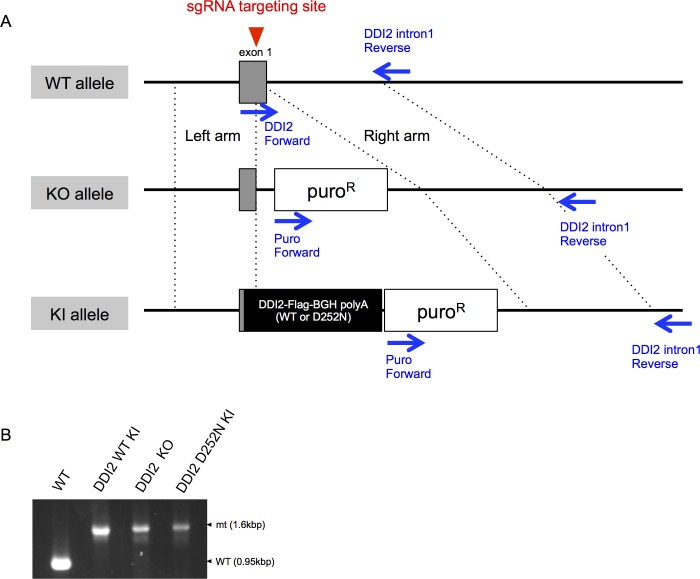

Figure 3—figure supplement 1. Genome editing of <italic>DDI2</italic> locus by CRISPR-Cas9 system.

(A) Schematic diagram of DDI2 wild-type (WT), knockout (KO), and knock-in (KI) alleles. Red arrowhead indicates sgRNA targeting site, and blue arrows indicate PCR primers for confirmation of homologous recombination. puro^R indicates a puromycin resistant cassette. (B) Confirmation of successful genome editing at the DDI2 locus. The genome DNA of each cell line was extracted and amplified by PCR using primer pairs shown in (A).

DOI:http://dx.doi.org/10.7554/eLife.18357.009
