Fig 7

ID
ZDB-IMAGE-191230-664
Genes
Antibodies
Source
Figures for Prill et al., 2019
Figure Caption

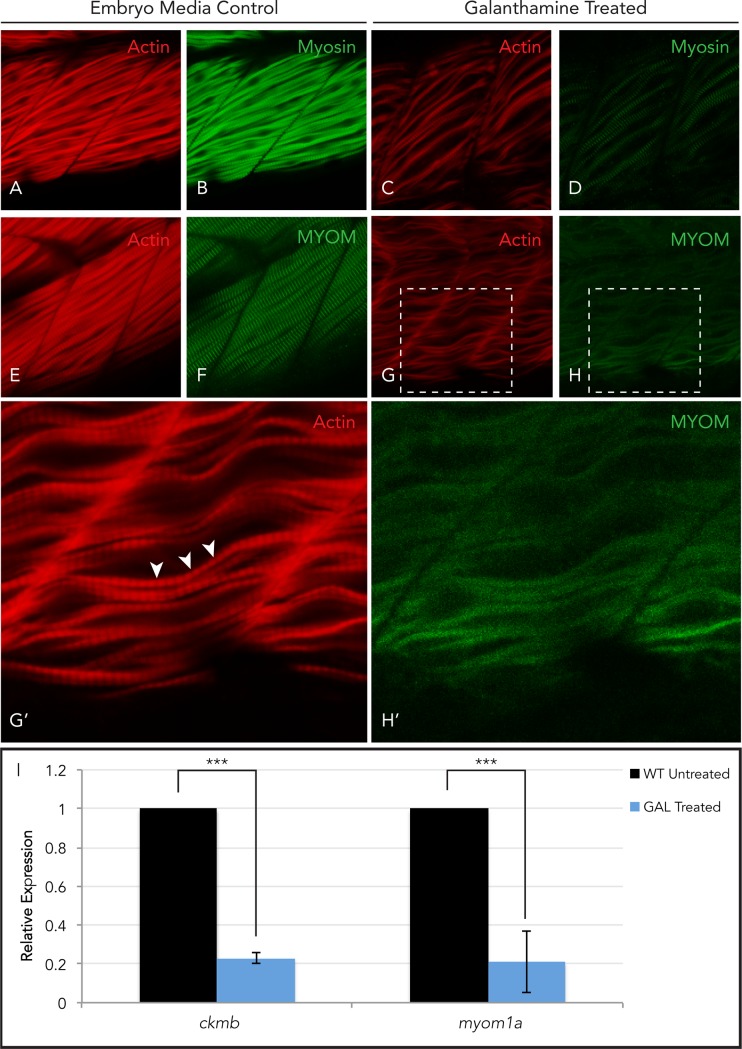

Fig 7 Myomesin is absent in damaged skeletal muscle.

Zebrafish embryos treated with galanthamine (GAL) to induce muscle damage by hypercontraction from 28 to 48hpf demonstrated actin and myosin striations in both untreated (A&B) and treated (C&D) wild-type embryos; although GAL treated embryos exhibited fiber disorganization. Myomesin striations are visible in untreated wild-type embryos (E&F) while absent in GAL treated embryo muscle (G&H) even though actin striations, indicative of intact sarcomeres, are present (G’, white arrowheads; H’). qPCR analysis of ckmb and myom1a expression in galanthamine treated and untreated wild-type embryos demonstrated a significant decrease in the expression of both M-band genes at 48hpf (I). (Error bars are standard deviation. Expression is normalized using ef1a and wild-type at 48hpf).
