FIGURE 6

ID: ZDB-IMAGE-191230-1147
Publication: Vecchia et al., 2019 - Reelin Signaling Controls the Preference for Social Novelty in Zebrafish
All Figures: Figures for Vecchia et al., 2019


Figure Caption

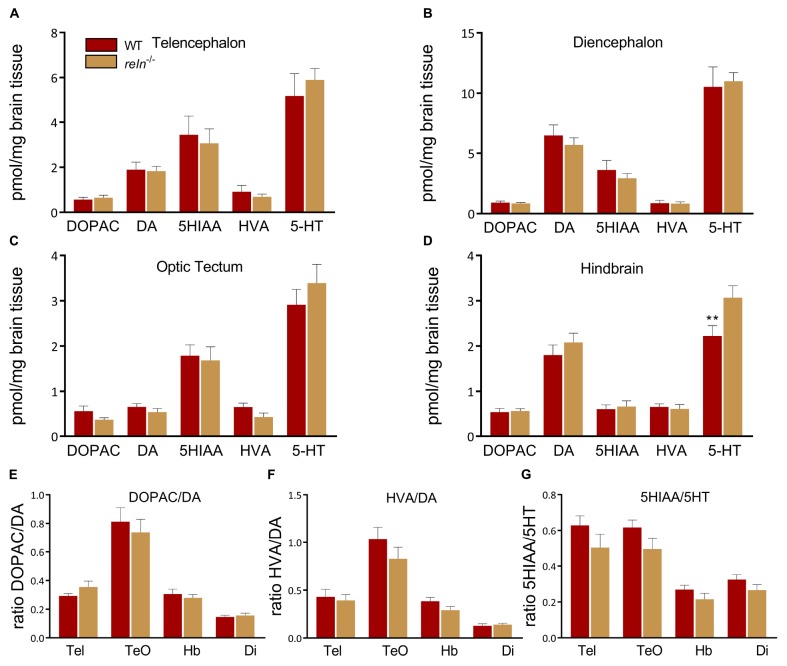

FIGURE 6

High pressure liquid chromatography. 5-HT levels are increased in the hindbrain of reln^–/– compared to WT [t-test: t₍₃_.694₎ = 70, p = 0.0021, multiple t-tests with Holm–Sidak multiple comparisons correction. n = 8 WT, n = 8 reln^–/–]. (A) Telencephalon, (B) diencephalon, (C) optic tectum and (D) hindbrain. No differences in the breakdown of (E) DOPAC/DA, (F) HVA/DA, (G) 5-HIAA/-5HT. DA, dopamine; Di, diencephalon; DOPAC, 3,4-Dihydroxyphenylacetic acid; Hb, Hindbrain; HVA, homovanillic acid; Tel, telencephalon; TeO, optic tectum; 5-HIAA, 5-hydroxyindoleacetic acid; 5-HT, 5-hydroxytryptamine. ^∗∗p < 0.01. Mean ± SEM.

Figure Data

Phenotype details
