Fig 5

ID

ZDB-IMAGE-190723-836

Genes

cdkn1a

Antibodies

Publication

Song et al., 2019 - HDAC1-mediated repression of the retinoic acid-responsive gene ripply3 promotes second heart field development

All Figures

Figures for Song et al., 2019


Figure Caption

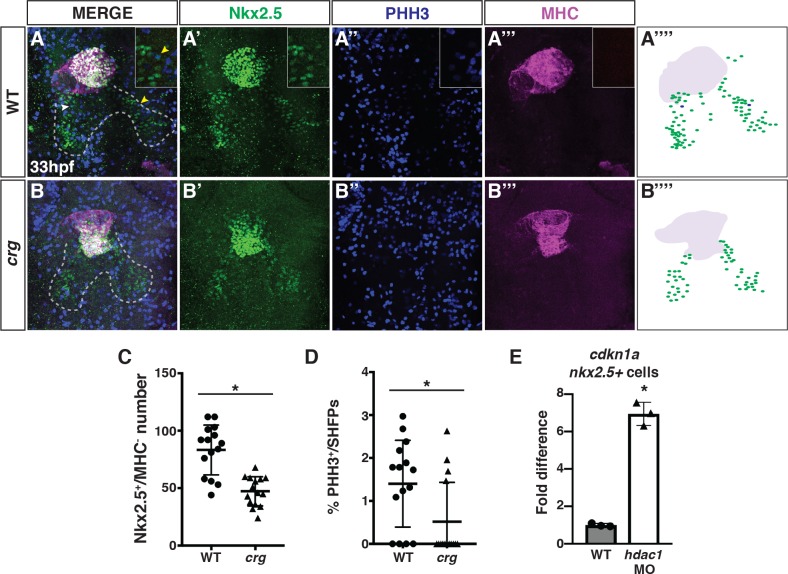

Fig 5 Hdac1 is required for the proliferation of SHF progenitors.

(A-B”‘) Confocal images of IHC for hearts and Nkx2.5⁺ SHF progenitors in WT sibling and crg mutant embryos at 33 hpf. Nkx2.5⁺ (green), PHH3 (blue) and MHC (purple). Outline in A and B indicates Nkx2.5⁺/MHC^- SHF. Arrows indicate Nkx2.5⁺/MHC^-/PHH3⁺ cells. Yellow arrow indicates Nkx2.5⁺/MHC^-/pHH3⁺ cell of the higher magnification inset. (A”“and B”“) Schematic indicating IHC from A and B. Green indicates Nkx2.5⁺/MHC^- cells. Blue indicates Nkx2.5⁺/MHC^-/PHH3⁺ cells. Purple indicates MHC⁺ cells. Anterior is up in A-B”“. (C) Quantification of SHF progenitors (Nkx2.5⁺/MHC^-). (D) Percentage of PHH3⁺ SHF progenitors. For C and D, n = 14 for WT and n = 15 crg mutants. (E) RT-qPCR for cdkn1a from sorted nkx2.5:ZsYellow⁺ cells.

Figure Data

Expression / Labeling details

Phenotype details
