Fig. 3

ID

ZDB-IMAGE-190723-1354

Genes

myb
runx1

Publication

Liu et al., 2019 - Primary cilia regulate hematopoietic stem and progenitor cell specification through Notch signaling in zebrafish

All Figures

Figures for Liu et al., 2019


Figure Caption

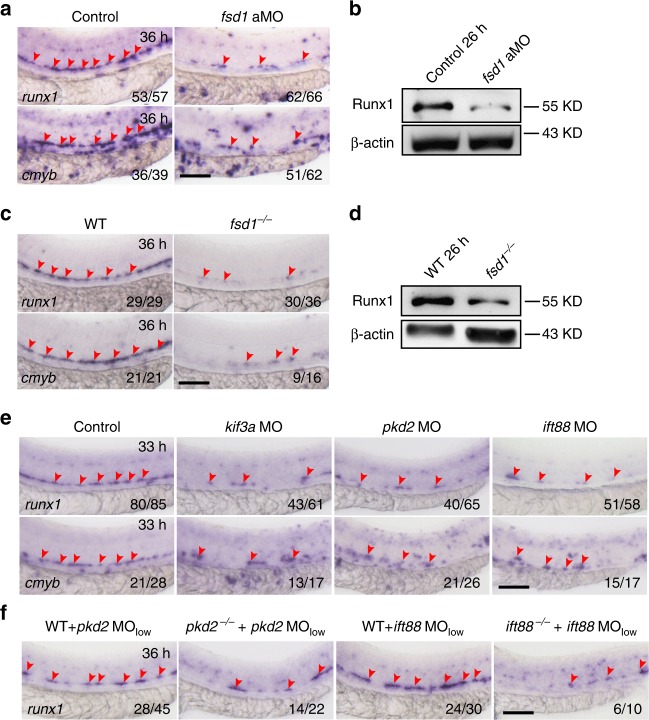

Fig. 3

Loss of cilia genes induces hematopoietic stem and progenitor cell (HSPC) defects. a Whole-mount in situ hybridization (WISH) results of HSPC markers (runx1 and cmyb) in the aorta-gonad-mesonephros (AGM) region in control and fsd1 morphants at 36 hpf. The red arrowheads indicate the expression of HSPC markers runx1 and cmyb in DA. b Western blotting showing the protein level of Runx1 in control and fsd1 morphants at 26 hpf. c WISH analysis showing the expression of HSPC markers runx1 and cmyb (red arrowheads) in the DA in fsd1^−/−. d Western blotting showing the protein level of Runx1 in fsd1^−/−. e Representative images showing runx1 and cmyb expression in control, pkd2, kif3a, and ift88 morphants at 33 hpf. The red arrowheads indicate the expression of HSPC markers runx1 and cmyb. f WISH analysis showing the expression of HSPC marker runx1 in the DA in pkd2^−/− or ift88^−/− with a sub-effective dose of pkd2 MO (0.5 ng per embryo, pkd2 MO_low) or ift88 MO (0.8 ng per embryo, ift88 MO_low). The red arrowheads indicate the expression of HSPC marker runx1. Scale bars, 100 µm

Figure Data

Expression / Labeling details

Phenotype details
