Figure Caption
Fig. 4

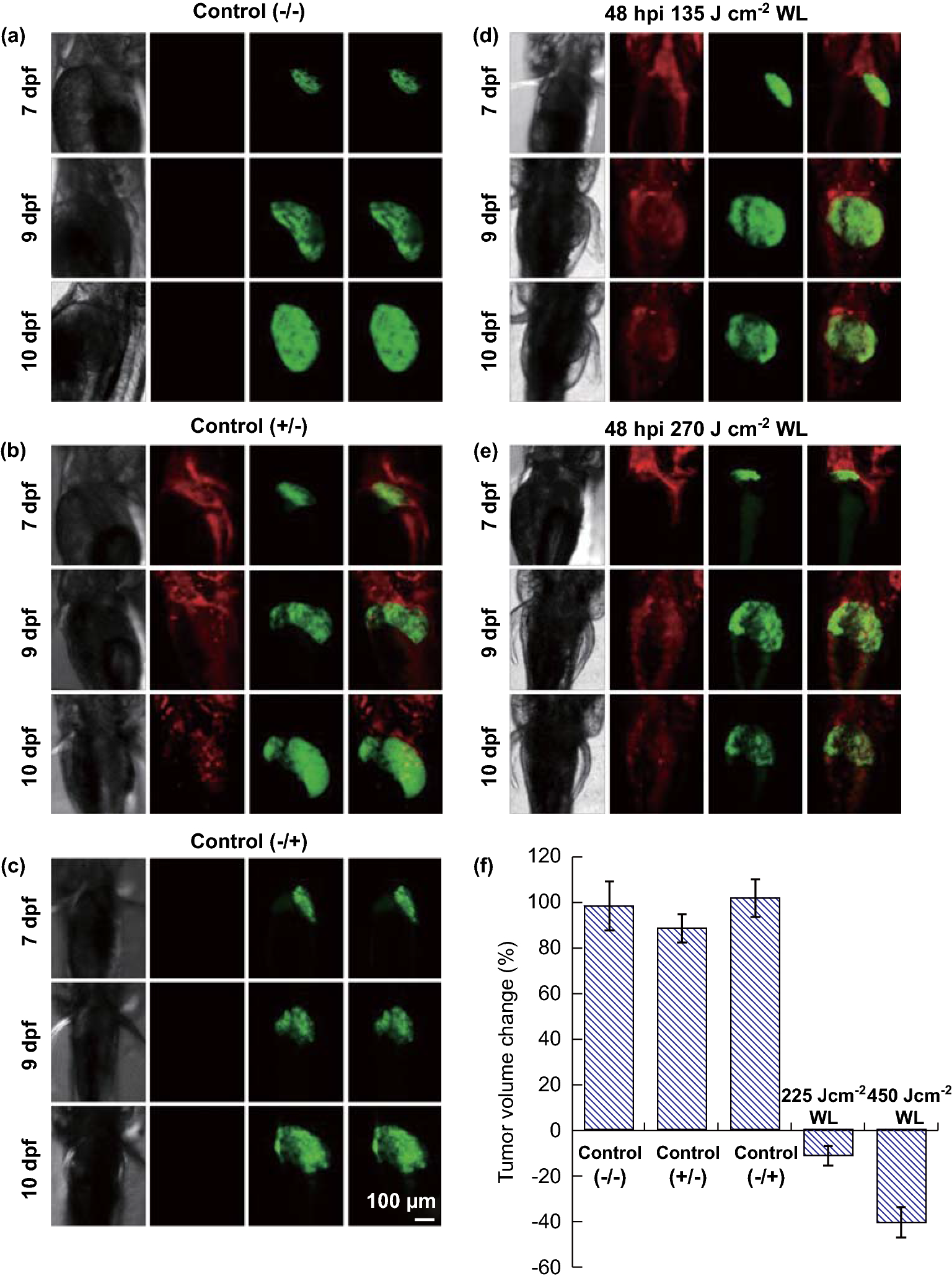

Change in liver tumor volume for control group: a without injection or illumination (?/?), b with injection and without illumination (?/+) and c without injection and with illumination (+/?). Change in liver tumor volume for group injected with NPs on 7 dpf and treated: d with 135 J cm?2 of illumination 9 dpf and e with 270 J cm?2 of illumination of 9 dpf. f Graph depicting the percentage of tumor volume change on 10 dpf relative to the volume on 9 dpf before light treatment for all five groups, n?=?14; confocal ?ex?=?488 nm, green fluorescent protein ?em?=?509 nm, PPDCT ?em?=?660 nm
