Fig. S7

ID
ZDB-IMAGE-180912-23
Genes
Source
Figures for Kinoshita et al., 2018
Figure Caption

Fig. S7

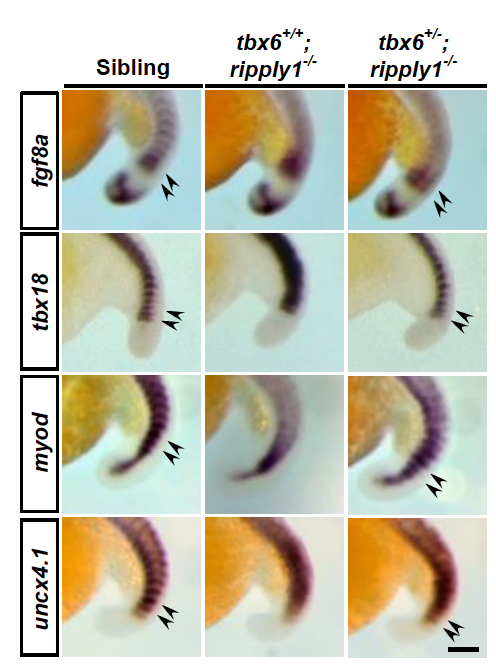

Expression patterns of uncx4.1, tbx18, myod, and uncx4.1 in the PSM of sibling, tbx6+/+; ripply1-/-, and tbx6+/-; ripply1-/- embryos at the 18ā€“22-somite stages. Higher magnification of the photos shown in Fig. 4S-Dā€™. Scale bar is 100 mm.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Mechanisms of Development, 152, Kinoshita, H., Ohgane, N., Fujino, Y., Yabe, T., Ovara, H., Yokota, D., Izuka, A., Kage, D., Yamasu, K., Takada, S., Kawamura, A., Functional roles of the Ripply-mediated suppression of segmentation gene expression at the anterior presomitic mesoderm in zebrafish, 21-31, Copyright (2018) with permission from Elsevier. Full text @ Mech. Dev.
