Fig. 10

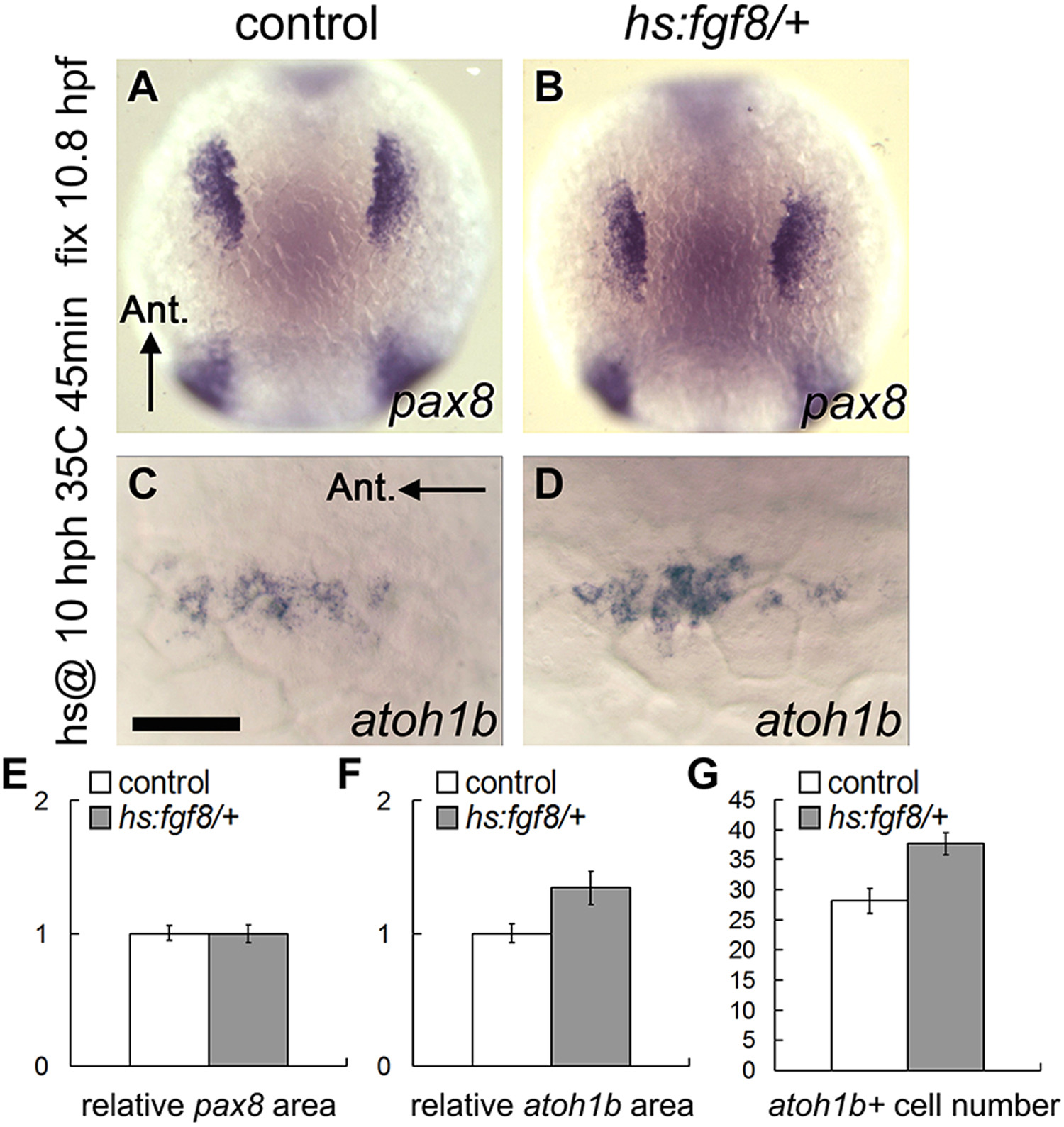

Low-level misexpression of Fgf8 expands sensory potential in the early placode. (A–D) Dorsal views showing expression of pax8 (A, B, anterior up) and atoh1b (C, D, anterior to the left) at 10.8 hpf in control (A, C) and hs:fgf8/+ (B, D) embryos that were heat shocked at 10 hpf, 35 °C for 45 min. (E–G) Quantification of relative surface area of otic/epibranchial pax8 domain (E), atoh1b domain (F) and the number of atoh1b-expressing cells (G) in control and hs:fgf8/+ embryos following heat shock at 10 hpf, 35 °C for 45 min. Error bars represent standard error of the mean. Asterisks indicate statistically significant differences compare to control (*P<0.05, student's t-test, n>22).
