Figure Caption

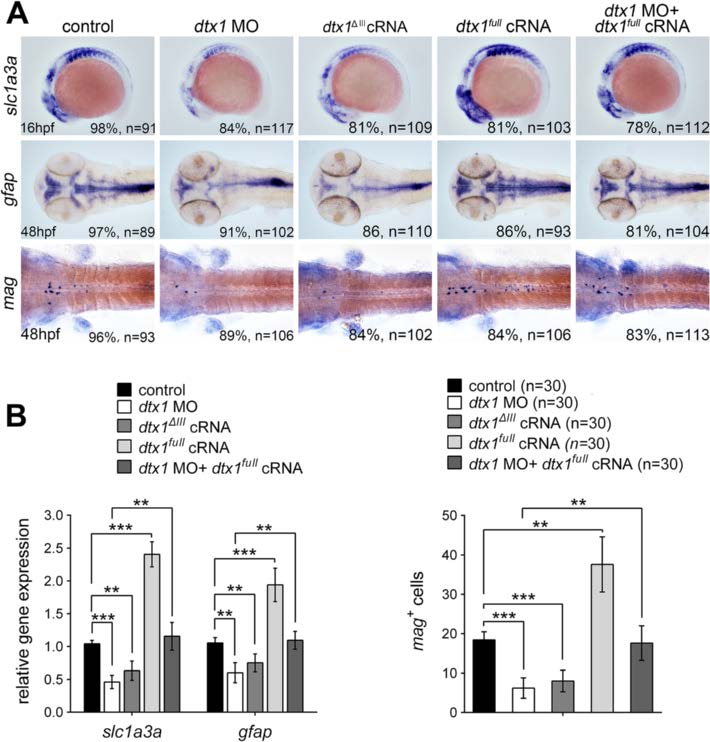

Fig. 6
Dtx1 induces the expression of markers for glial precursors and mature glial cells. a Expression of slc1a3a, mag, and gfap was induced in embryos that overexpressed dtx1 full . An injection with dtx1 ΔIII or dtx1 morpholino downregulated slc1a3a, mag, and gfap expression, and this effect could be rescued by a concomitant injection of dtx1 full cRNA. The embryo stages are shown in the bottom left corner of each panel. b qPCR analysis and cell count confirmed the results obtained through in situ hybridization shown in A. *, P < 0.05; **, P < 0.01; ***, P < 0.001
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Neural Dev.
