Fig. 4

ID
ZDB-IMAGE-170123-27
Genes
Source
Figures for Drummond et al., 2017
Figure Caption

Fig. 4

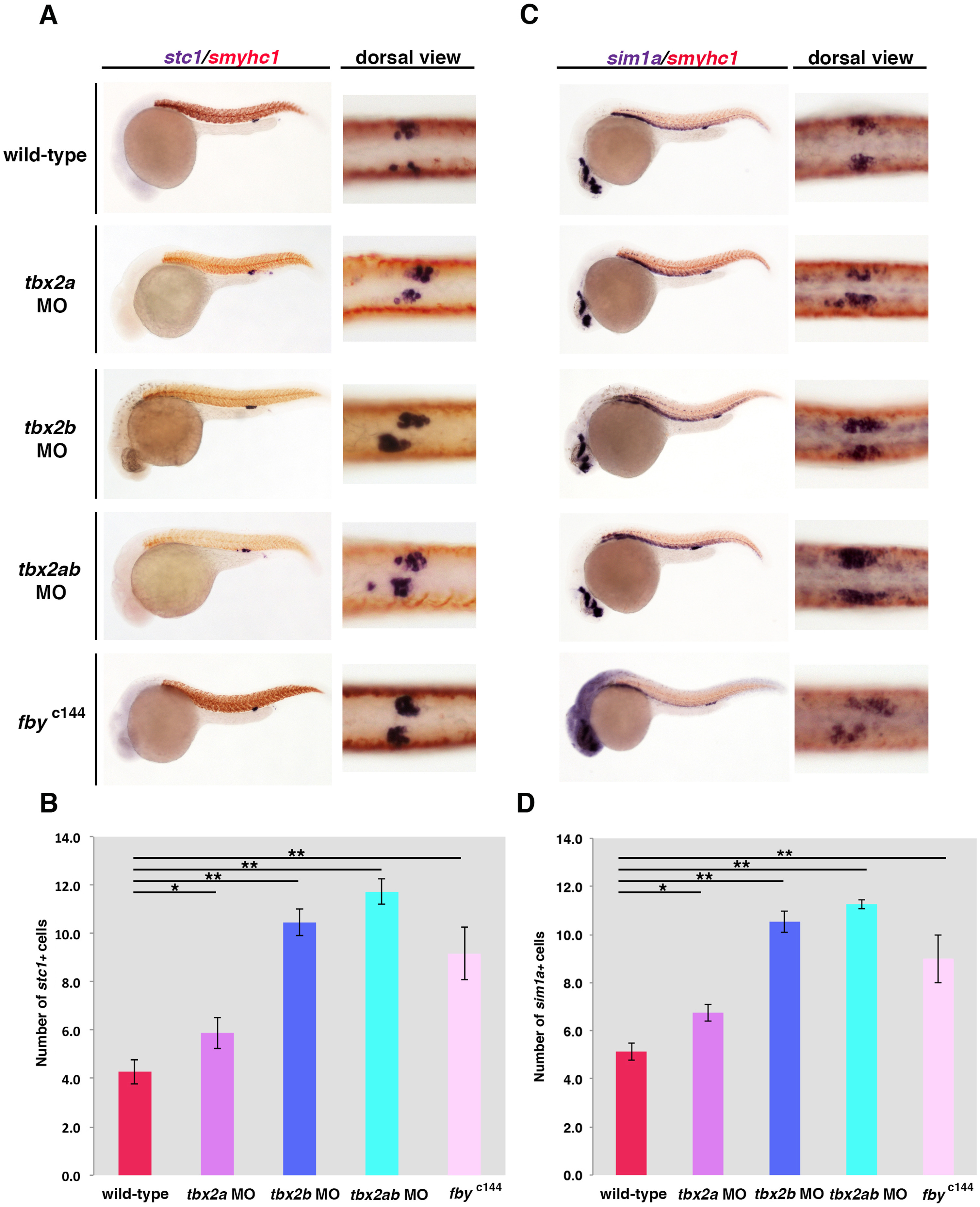

tbx2a/b deficiency leads to an increase in the number of cells in the CS. (A) The CS was labeled by whole mount in situ hybridization to detect transcripts encoding stc1 at the 28 ss stage. (B) In wild-type embryos, each CS is typically comprised of about 4–6 stc1+ cells per nephron. However, tbx2a/b deficiency in morphants and fbyc144 mutants induced a significant increase of the stc1+ cell number in the CS. (C) Labeling the CS with sim1a revealed a similar phenotype consistent with an inhibitory role of tbx2a/b in CS development. (D) Quantification of sim1a+ CS cell number revealed that tbx2a, tbx2b and tbx2a/b morphants and fbyc144 mutants all led to a significantly greater number of CS cells than wild-type embryos. For each experiment, at least 15 morphant embryos and 3 genotypically confirmed fbyc144 mutant embryos were examined. (*p<0.05, **p<0.001). Abbreviations: CS (corpuscle of Stannius).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 421(1), Drummond, B.E., Li, Y., Marra, A.N., Cheng, C.N., Wingert, R.A., The tbx2a/b transcription factors direct pronephros segmentation and corpuscle of Stannius formation in zebrafish, 52-66, Copyright (2017) with permission from Elsevier. Full text @ Dev. Biol.
