Figure Caption

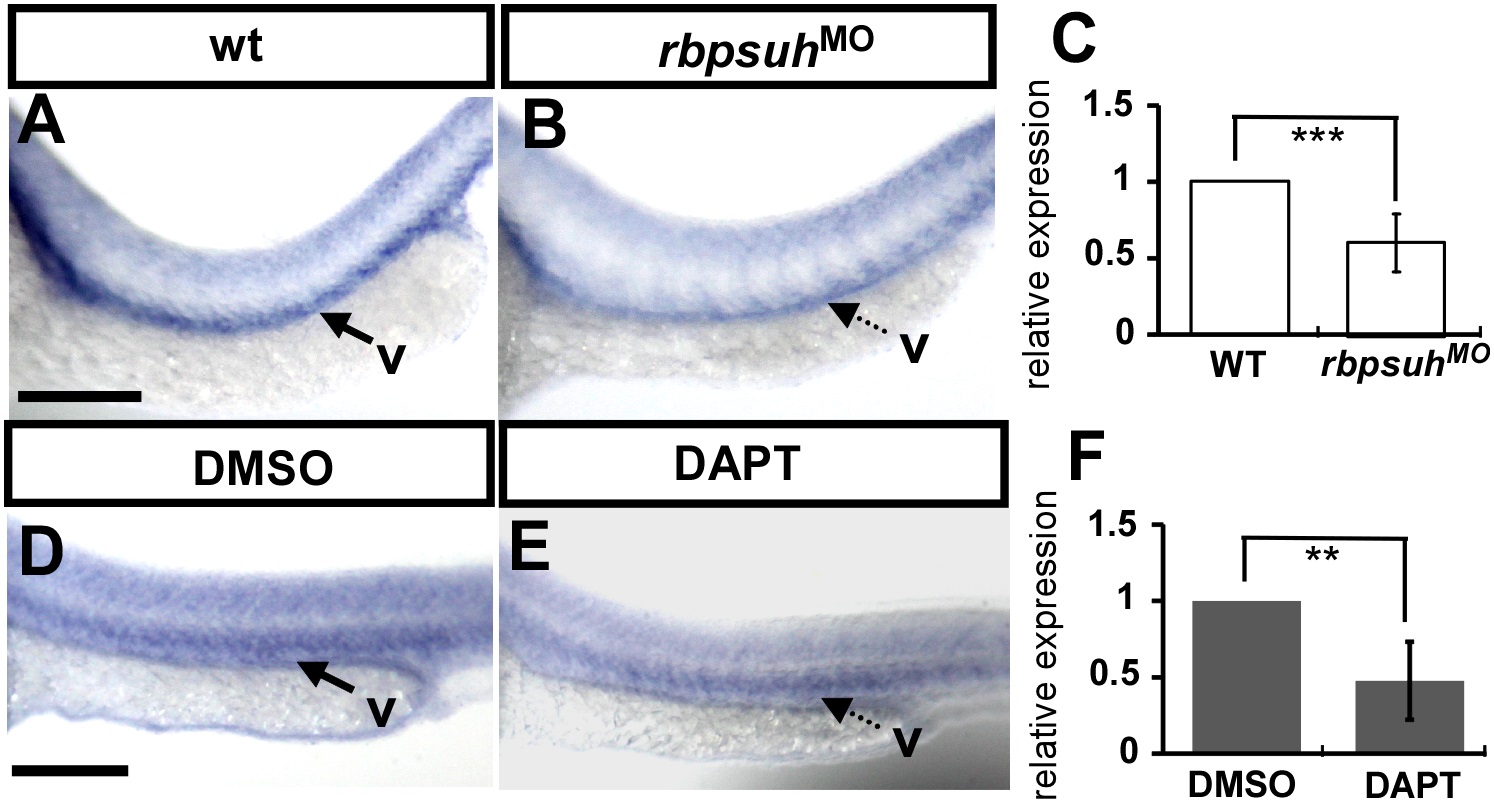

Fig. 9
Regulatory relationships between nr2f1a and Notch.
(A-B) nr2f1a expression is downregulated in rbpsuh morphants (B) as compared to untreated control embryos (A). (D-E) nr2f1a expression is downregulated after treatment with DAPT (E) as compared to DMSO control embryos (D). (C, F) Quantification of the relative nr2f1a expression level by real-time qPCR assay shows a ~50% reduced expression in rbpsuh morphants (C) and DAPT-treated embryos (F) compared to uninjected embryos and DMSO-treated controls. Scale bars represent 100 µm in A, B, D and E.
