ZFIN Image: Hsu et al., 2012, Fig. 1


Figure Caption

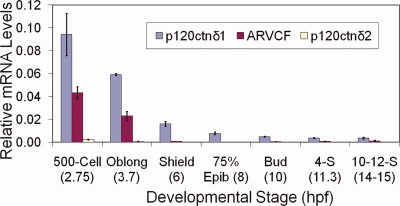

Fig. 1

p120 catenin δ1 is the predominant p120 catenin mRNA in early developing embryos. Real-time PCR was used to make a quantitative analysis of relative expression levels of p120 catenin δ1, p120 catenin δ2a, and ARVCF at various stages from 500-cell to 12-somite embryos of developing zebrafish. Relative amounts were calculated using the 2^-ΔΔC(t) method to standardize target gene expression to an endogenous standard (EF-1α). Plotted values represent the mean of all 2^{Standarized ΔC(t)} for a developmental stage and primer combination, ± 2 s.e.m. See Supp. Figure S1 for more details. For most stages and primer combinations N = 6.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dev. Dyn.
