Figure Caption

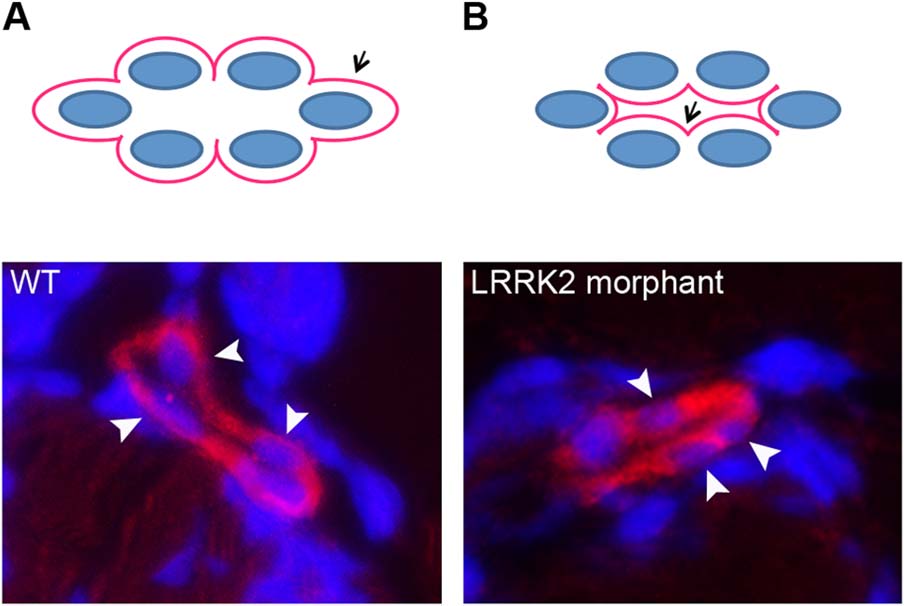

Fig. 9
LRRK2 knockdown causes mislocalization of the Na+/K+ ATPase protein in the kidneys. A,B: Immunofluorescence images of 10-µm sections of 60 hpf wt embryos (A) and LRRK2 morphants (B) injected with the LRRK2 translational MO and stained using a Na+/K+ ATPase antibody and DAPI. The Na+/K+ ATPase is localized to the basolateral side of the cells in sections from wt embryos. In contrast, the Na+/K+ ATPase is localized to the apicolateral side of the cells in sections from LRRK2 morphants.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ J. Neurosci. Res.
