ZFIN Image: Cheng et al., 2015, Fig. 5


Figure Caption

Fig. 5

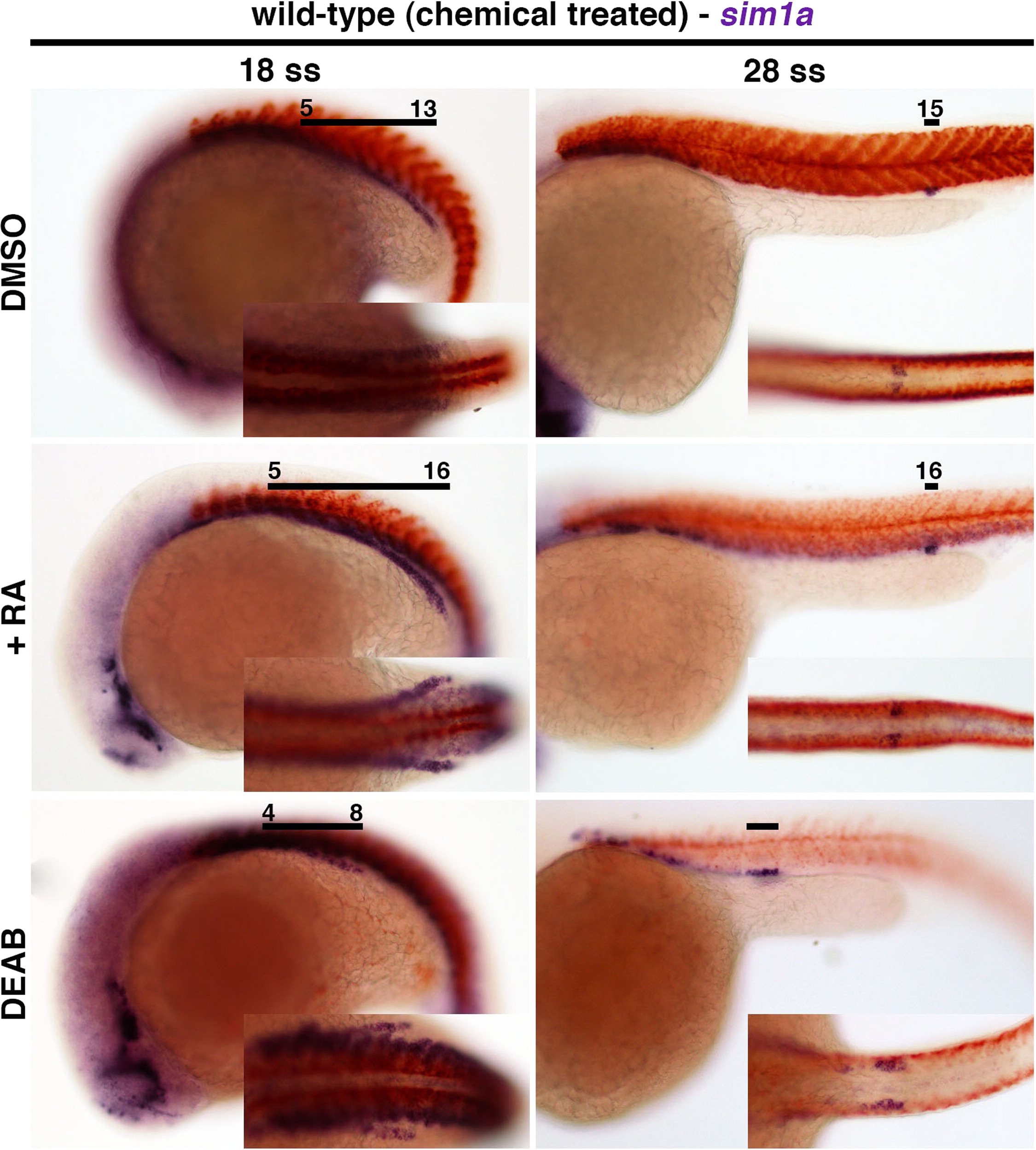

RA mediates the sim1a domain within the pronephric renal progenitor field. (A) Wild-type embryos were treated with either a DMSO control at 75% epi, exogenous RA (1×10⁸ M, denoted as+RA) at 50–60% epi, or 1.67×10⁵ M DEAB at 75% epi. Groups were treated with their respective chemical until the 5–7 ss and then analyzed for sim1a expression (purple) by WISH at the 18 and 28 ss. Transcripts encoding smyhc1 (red) mark the somites. Black lines with corresponding numbers indicate segment domains and somites, respectively. Embryo anterior is located to the left. Abbreviations: DEAB – 4-diethylaminobenzaldehyde; epi – epiboly; RA – retinoic acid; ss – somite stage; WISH – whole mount in situ hybridization.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 399(1), Cheng, C.N., Wingert, R.A., Nephron proximal tubule patterning and corpuscles of Stannius formation are regulated by the sim1a transcription factor and retinoic acid in zebrafish, 100-16, Copyright (2015) with permission from Elsevier. Full text @ Dev. Biol.
