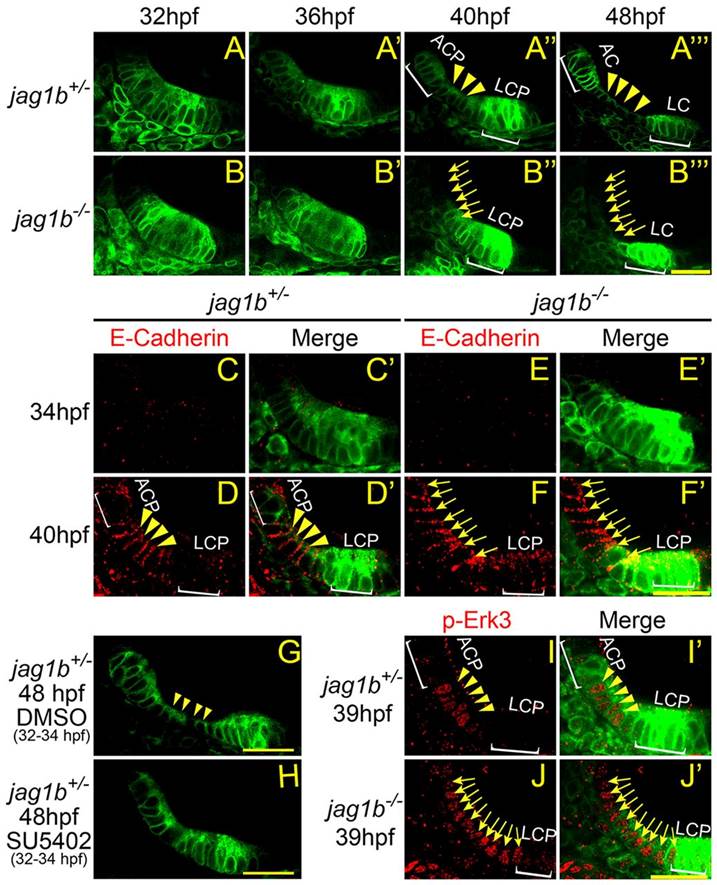

The anterior and lateral cristae are developed from a single anterior prosensory domain. (A-B′′′) Time-lapse imaging of the anterior pro-sensory domain development in jag1b^+/- and jag1b^-/- embryos. In jag1b^-/- embryos, ACP and cells in the middle of the anterior prosensory domain undergo morphological change (B′′,B′′′, arrows). ACP, anterior crista primordia; LCP, lateral crista primordia; AC, anterior crista; LC, lateral crista. Arrows and arrowheads indicate cells undergoing morphological change. (C-F′) E-cadherin immunofluorescence staining in jag1b^+/- and jag1b^-/- embryos. At 40hpf, only cells in the middle of the anterior prosensory domain express E-cadherin in jag1b^+/- embryos (D,D′, arrowheads). In jag1b^-/- embryos, ACP and cells in the middle of the anterior prosensory domain express E-cadherin (F,F′, arrows). (G,H) Treatment with FGF inhibitor SU5402 at 32-34hpf blocks the separation of anterior and lateral cristae in jag1b^+/- embryos. (I-J′) pErk3 immunofluorescent staining in jag1b^+/- and jag1b^-/- embryos. Dorsolateral views. Scale bars: 20µm. Anterior towards the left and dorsal upwards. Arrows and arrowheads indicate staining of E-Cadherin or p-Erk3.
